US$14,000.00-18,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Longitudinal Travel(Manual/Auto)
900/880
Cross Travel(Manual/Auto)
315/300
Vertical Travel(Manual/Auto)
385/365
Rapid Feed Speed
2300/1540/770mm/Min
Spindle Speed Range
30~1500r/Min
Spindle Speed Step
18steps
Max.Swivel Angle of Vertical Milling Hea
±45°
Distance Between Spindle Nose and Table
115/500mm
Overall Dimensions(L×w×h)
2556×2159×2258
Transport Package
Plywood Case with Steel Base
Production Capacity
1000/Year
Packaging & Delivery
Package Size
245.00cm * 210.00cm * 245.00cm
Package Gross Weight
4300.000kg
Product Description
Product Description
X5040 Universal Vertical Knee type milling and drilling machine
Product Introduction:
Vertical lifting platform milling machine is a kind of general metal cutting machine tool. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Product Features:
1-Using rectangular guide machine is Rigid good.
2-Work table and guide rail through the ultra audio spark quenching.
3-Work bench X. Y.Z are gear drive automatic feed and manual operation.
4-Milling head can be rotated 45 degrees.
Product Parameters
| Specification | Unit | X5040 | X5032 |
| Table size | mm | 400*1700 | 320*1325 |
| T-slots(NO./Width/Pitch) | | 3/18/90 | 3/18/70 |
| Longitudinal travel(manual/auto) | mm | 900/880 | 700/680 |
| Cross travel(manual/auto) | mm | 315/300 | 255/240 |
| Vertical travel(manual/auto) | mm | 385/365 | 350/380 |
| Rapid feed speed | mm/min | 2300/1540/770 | 2300/1540/770 |
| Max load | kg | 800 | 600 |
| Spindle taper | | 7:24 ISO50 | 7:24 ISO50 |
| Spindle speed range | r/min | 30~1500 | 30~1500 |
| Spindle speed step | steps | 18steps | 18steps |
| Spindle travel | mm | 85 | 70 |
| Max.swivel angle of vertical milling head | | ±45° | ±45° |
| Distance between spindle nose and table surface | mm | 115/500 | 30/400 |
| Main motor Power | kw | 11 | 7.5 |
| Overall dimensions(L×W×H) | mm | 2556×2159×2258 | 2300X1770X1900 |
| Net weight | kg | 4250 | 2900 |

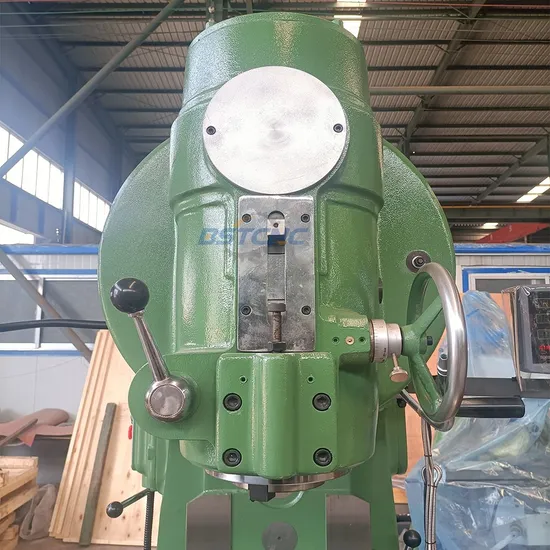

Detailed Photos
Company Profile
Why Choose Us
Cooperation Customers
Packaging & Shipping
FAQ
>>
