FTTH AGC CATV Micro Optical Node Cable TV Optical Node 2 Outputs Mini FTTH Node

Product Description

Product Description
PRODUCT DESCRIPTION

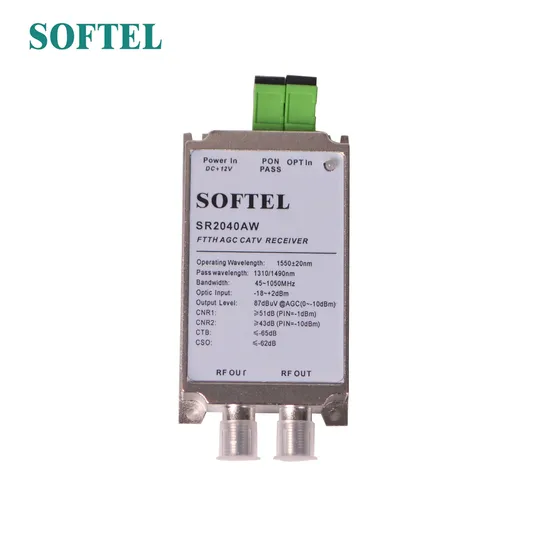

SR2040AW, the operating bandwidth of 47~1000MHz, is a low power, high performance, cost-effective triple play, FTTH CATV optical receiver, Whether used in analog television or digital television. Products with high sensitivity optical receiver tube and special low noise matching circuit. SR2040AW within a large dynamic range of the received optical power of +2 dBm ~-18dBm, have excellent characteristics.
PRODUCT FEATURE
Extra-low noise Wide dynamic receiving optical power range: within Pin=-16, MER≥36dB Applicable GPON, EPON, compatible with any FTTx PON technology Can save a large number of optical power resource, greatly reduce the network configuration cost Within 47~1000MHz bandwidth, all with excellent flatness feature ( FL≤±1dB ) Metal case, offer safeguard for optoelectronic sensitive devices High output level, can be used by many users Low power consume, high performance, high cost performance MAIN APPLICATION CATV FTTH Integration of three network FTTH PON STATUS INDICATION Red Flashing: > 0dBm Green: ≤ 0dBm & >-10dBm Red: ≤ -10dBm
Product Parameters

Performance		Index	Supplement
Optic Feature	CATV Work wavelength	(nm)	1540~1560
	Pass wavelength	(nm)	1310, 1490
	Channel Isolation	(dB)	≥35
	Responsibility	(A/W)	≥0.85	1310nm
			≥0.9	1550nm
	Receiving power	(dBm)	+2~-18
	Optical return loss	(dB)	≥55
	Optical fiber connector		SC/APC
RF Feature	Work bandwidth	(MHz)	47~1000
	Flatness	(dB)	≤±1	47~1000MHz
	Output level(Port1&2)	(dBμV)	87±2	Pin=+0~-10dBm AGC
	Return loss	(dB)	≥14	47 ~ 862MHz
	Output impedance	(Ω)	75
	Output port Number		2
	RF tie-in		F-Female
Analog TV Link Feature	Test channel	(CH)	59CH(PAL-D)
	OMI	(%)	3.8
	CNR1	(dB)	53.3	Pin=-2dBm
	CNR2	(dB)	45.3	Pin=-10dBm
	CTB	(dB)	≤-61
	CSO	(dB)	≤-61
Digital TV Link Feature	OMI	(%)	4.3
	MER	(dB)	≥36	Pin=-16dBm
			≥30	Pin=-20dBm
	BER	(dB)	<1.0E-9	Pin:+2~-21dBm
General Feature	Power supply	(V)	DC+12V	±1.0V
	Power Consume	(W)	≤3	+12VDC, 180mA
	Work Temp	(ºC)	-25~ +65
	Storage Temp	(ºC)	-40 ~ 70
	Work relative temp	(%)	5 ~ 95
	Size	(mm)	50×88×22

Company Profile
Packaging & Shipping
FAQ
1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, and Western Union. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS, and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
4. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. How about the Warranty?
There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.

---
