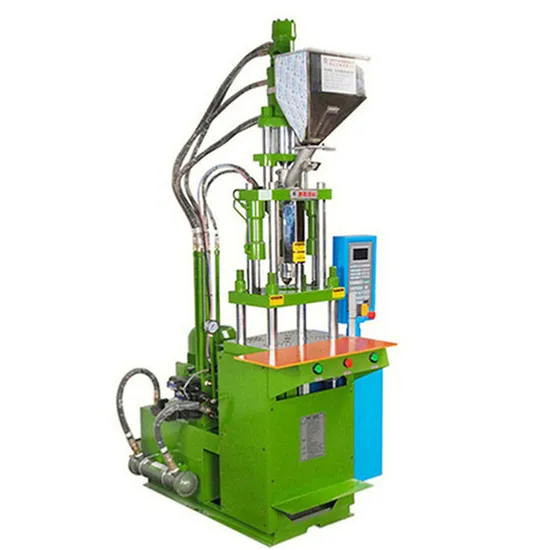

Injection Molding Machine for Making 3 Pin Power Chord

Product Description

injection molding machine for making 3 pin power chord
1.in-line screw type injection apparatus.
2.temperature control.three-stage.fast,back pressure,screw speed stepless adjustment for a variety of precision plastic parts molding.
3.the lower mold fixed on the movable mold,insert items for a good positioning of the resistance,and has finished top of the device.
4.the low-pressure mold clamping device protection security.
5.the tube can lift,clean and convenient material head,fixed moldeasier.
6.can be installed with a single mode skateboards,skateboard or alternating dual mode
Detailed Images:
Advantage:
Parameter of Machine

Model	Unit	JY-350ST-D			JY-450STD			JY-550STD			JY-850STD			JY-1200STD
Screw Barrel Diameter	mm	26	28	30	30	32	34	32	35	42	42	45	48	42	45	48
Injection Pressure	kg/cm2	1530	1278	886	1171	996	820	1642	1385	##	1027	895	790	1469	1280	1125
Max. Shot Weight	gram	56	64	74	74	84	106	102	123	##	176	201	227	199	228	260
Max. Shot Weight	cm3/sec	57	66	76	62.5	71	95	49	59	84	99	113	129	95	129	183
Screw Barrel Route	mm	115			115			140			140			200
Screw Barrel Rotary Speed	rpm	0-205			0-190			0-175			0-200			0-180
Nozzle Contact Force	tons	4.45			4.45			5.5			6.5			7.5
Nozzle Retraction Nozzle	mm	170			190			210			210			210
Number of Temperature Control	pcs	3			3			3			4			5
Clamping Force	tons	35			45			55			85			120
Platen Size	mm	350*350			400*400			450*450			500*500			550*550
Distance Between Tie Bere	mm	375*205			410*250			470*280			525*325			635*425
Min. Mold Height	mm	150/100			200/150			250/200			430/230			480/280
Opening Stroke	mm	180			200			200			255			300
Max. Opening Mold Distance	mm	330/280			400/350			450/400			685/485			780/580
Ejetor Force	tons	1.3			1.5			1.5			2.2			4.8
Ejetor Stoke	mm	135			135			135			135			135
Max. Hydraulic Pressure	kg/cm2	140			140			140			140			140
Pump Output	L/min	34.5			37.2			40			47			56
Oil Resservoir Capacity	Liter	100			130			150			180			200
Cooling Water Consumption	L/hr	400-600			600-800			800-1000			800-1000			1000-1200
Pump Motor Power	kw/hp	3.75/5HP			5.5/7.5HP			7.5/10HP			11/15HP			14.5/22HP
Barrel Heating Power	kw	2.4			2.8			4.5			5			6
Total Power	kw	6.3			9			12			16			20
Machine Weight	tons	1.15			2			2.5			5			6.5
Machine Dimension(LxWxH)	meter	1.65*1.07*2.35			1.8*1.15*3.08			2.2*1.2*3.33			2*1.3*2.5			2.3*1.4*2.7
Shipping Weight	tons	1.3			2.2			2.7			5.4			6.7
Shipping Measurements(LxWxH)	meter	1.7*1.12*2.49			2*1.25*2.3			2.4*1.3*2.6			2.2*1.4*2.6			2.45*1.5*2.8

Application :
About Us

Packing & Shipping :
Our Services
1) 24 hours services, the answers to any questions will be replied sooner.
2) Direct factory services, exclusive and unique solution can be provided to you by our professional engineers and staffs teams.
3.)Materials suppliers offered ,the contact ways to different kinds of the materials and equipments of your products can be supported here, you can contact them by yourself .
4) After-sales services, engineers available to service machinery overseas; besides, the videos and document of solution will be sent at once.
5) The full and specific set of the subject for your project will be offered for you by free after we get touch with you.
6)12 Months Warranty and spare parts of machine will be offered within 3 days to avoid to waste your production time.
FAQ
Q1: Are you a trading company or a manufacturer?
A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements
Q2: What's your warranty for the machine?
A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.
Q3: What's your Delivery Time?
A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.
Q4: Where is your factory? How can visit you?
A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station.
Q5: Why choose Jieyang Machinery Co., Ltd.?
A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.

---
