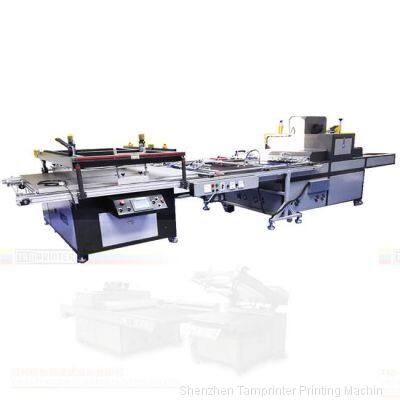

big size Automatic screen printing machine for sheet with automatic blanking

Product Details

Product Description

Product Description
big size Automatic screen printing machine for sheet with automatic blanking Video:
/p/CMzjG0yr94Z/?igshid=jn7j9uq7xl6e
/p/CM0Xo7FANqx/?igshid=xe6tgwpaw053
/p/CM0faxvAkuG/?igshid=1nhys6zfdf1hc
/shorts/XgMoMwGxLEs
/shorts/x9yKWLTN34Q
Specification

Item	Description
TMP-12150 Paper Oblique arm flat screen printer 8443192290	Worktable size: 1400X1700mm Max printing area: 1200X1500mm Max screen fame size : 1500X1800mm Min screen fame size::1050X1450mm Substrate thickness (mm):0-20 Printing speed (pcs/h):300-600 Working pressure（Mpa):0.3-0.5 Air consumption（0.6Mpa）(L/pc):13/pcs The minimum height of the table（Relative to the ground）mm:820 Machine size(mm): 2550X1900X1580mm=7.66CBM weight:500kg Rated voltage(P/V) 3/220 Source power: 2.3kw INCLUDE Tool box clamp 1200mm--1pcs，tinge 1220mm---1pcs； clamp 1500--1pcs，tinge 1520mm--1pcs.
TM-UV1200L UV Machine 8543709990	Conveyorbelt width(mm) 1180 belt tamaño entra(mm) 1200 Product max height (mm) 40 Conveyor speed (m) 2~20 Rated voltage(P/V) 3/220 UV lamp（KW/2pcs）5.6 Conveyor power（W）90 Total power（KW）12.1 Dimension（LWH）405015601350 11.29CBM Weight(kg) 900 plywood 415215170cm=15.17cbm
Robot Arm 8428904000	1,Working air pressure(Mpa): 0.3-0.5 2,Gas consumption(0.6Mpa)(L/pcs): 0.5 3,power(kw): 0.75 4, Rated voltage(P/V) 3/220 5,Take the feed rate (pcs/h): 1000 6,Dimension(mm) : L4000* W2000* H 900 7,weight(kg): 65
TMEP-17230 uv exposure machine 9010502200	Max exposure size: 12001800mm Max frame size 15002100mm Air consumption 13L/pcs Power Light source 5kW Air pump 850W Rated voltage(P/V) 3/220 Machine size: LWH 170023001000mm Plywood 2.5721.3m=6.68CBM Machine weight 787KG
TM-UV1200L UV Machine 8543709990	Conveyorbelt width(mm) 1180 belt tamaño entra(mm) 1200 Product max height (mm) 40 Conveyor speed (m) 2~20 Rated voltage(P/V) 3/220 UV lamp（KW/2pcs）5.6 Conveyor power（W）90 Total power（KW）12.1 Dimension（LWH）405015601350 //417016001720=11.47CBM Weight(kg) 900
TH-2000-p Squeegee Sharpening Machine 8477800000	Grinding stroke 2000MM Grinding thickness 5MM-20MM Grinding angle 90 Rated voltage(P/V) 3/220 Total power 2KW Machine size L251 * 61 * 104 CM=1.59CBM Machine weight 200KG
aluminum frame 7616999000	1.5 m x 1.8 m Complete Aluminum frame no include mesh 5kg
Mesh 5407610000	165T yellow width 165 cm 0.1kg/m
Mesh 5407610000	150T yellow width 165 cm 0.1kg/m
Belt 7019590000	Anti-static black teflon belt 38" Width, 308" Length.=W 1m+L7.85M ,HOLE 4MM*4MM 4kg
Belt 7019590000	Spare, Teflon glass fiber conveyor belt stick, size：1.176m*7.96m，life about 1years 6KG
Uv reflector 8543909000	Spare Uv lamp reflector Aluminum covered with stainless steel 3KG per PCS
Uv lamp 8539490000	spare Chinese uv lamp 800~1200 hours life 5.6kw 1280mm length 0.5KG per PCS+CARTON 0.5KG
Squeegee roll 3926909090	50mmx9mmx3.66m not brand multi layered shore (65/90/65) , Sectional shape G1 red/white/red 2.8kg
AL flood bar 8443919090	1270mm 1kg TSM-009
AL squeegee holder 8443919090	1250mm 1.5kg TSM-001

NOS.1 Product Code: 8443192290
Description: Other flat screens
Reporting elements:
1 Name: screen printing units
2 Purposes: printed patterns on flat products, text
3 Principle: When printing squeegee squeeze through, so that the ink is transferred through the mesh part of the graphic to the substrate to form the same with the original graphic
4 feeding mode: Manual
5 pieces Size: 1200 * 1500mm
6 brands: TAMPRINTER
7 Model:. TMP-120150
NOS.2 Product Code: 8419399030
Product Description: Industrial furnaces and ovens with other resistance
Reporting elements:
1 Name: UV light curing machine
2 Uses: dried product
3 heating principle: heating and drying the product by UV lamp
4 Brand: TAMPRINTER
5 Model:. TM-UV1200-L
6 whether the humidity function: no
NOS.3 Product Code: 8428399000
Product Description: Mechanical suction mouth rewinding machine
Reporting elements:
1 Name: Robot
2 Purposes: printed material received
3 Brands: TAMPRINTER
4 Models: None
hot tags: OEM auto screen printer.

Auto work video
With normal uv tunnel run to left
/watch?v=REWl8zH-2Ik
With normal uv tunnel run to right
/watch?v=_LHgMCYg-ks
/watch?v=3bpxVNTvWF0
with led uv tunnel
https://youtu.be/6NGKTmtbf-w
with conveyor line run to left
/watch?v=lsC3
TAMPRINTER printers in the paper packaging industry operate in the following categories:
Bank card screen printing machine
Picture album greeting card golden vermicelli printing machine production line
