Product Details
Product Description
Product Description
Brand: Yingpeng

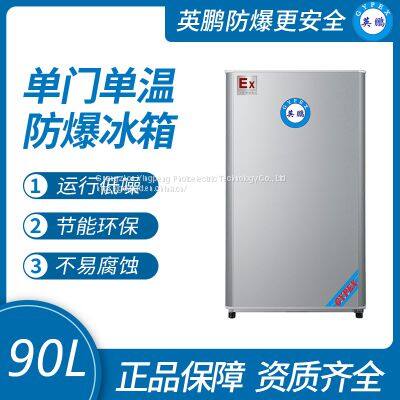

Model: BL-200DM90L
Style: Single door, single temperature
Rated voltage/frequency: 220V/50HZ
Effective volume (including mechanical room): 90L
Refrigeration temperature: 2-8 ℃
Refrigeration method: direct cooling
Control method: mechanical
Noise value: 37
Size (D * W * H mm): 535 * 480 * 856
Explosion proof grade: ExdibmbIICT4Gb
brand
Yingpeng
model
BL-200DM50L
BL-200DM90L
BL-200DM100L
BL-200DM150L
BL-200DM200L
style
Single door and single temperature
Rated voltage/frequency
220V/50HZ
Effective volume (including mechanical room)
fifty
ninety
one hundred
one hundred and fifty
two hundred
Reefer-Temperature required
2-8℃
2-8℃
-
-
-
Freezing temperature
-
-
‘-14~-24℃
’-18~0℃
’-18~0℃
Refrigeration method
Direct cooling
control mode
Mechanics
Noise value
thirty-seven
thirty-eight
Dimensions (depth * width * height)
466*500*540
535*480*856
495*550*990
550*635*1090
550*635*1340
Explosion proof level
ExdibmbIICT4Gb
It can be widely used in hazardous areas within Zone 1 (or Zone 2) of explosive gas mixtures with a temperature group of T4 in petroleum, chemical, aerospace, laboratory, storage and other departments. The BL series industrial grade integrated explosion-proof refrigerator is a Class IIC explosion-proof refrigeration system manufactured using integrated explosion-proof technology according to industrial environmental requirements.
Structural form of explosion-proof refrigerator.
The explosion-proof single door refrigerator only has one door and no dedicated freezer. The freezer box is directly composed of an evaporator and adopts a box structure with a small door installed on the upper part of the inner liner. The temperature inside is generally -12~-6 ℃, which can be used for ice making and freezing chemicals. Below the evaporator is a refrigeration room, without any insulation facilities in the middle. The cold storage room is cooled by natural convection of air, and the temperature is generally controlled between 0 and 10 ℃. There are temperature sensing probes, shelves, and temperature controllers installed on the outside, which are explosion-proof
>>
