3D Protection Photocell Door Sensor Banner Safety Light Curtains Easy Installation

Product Description

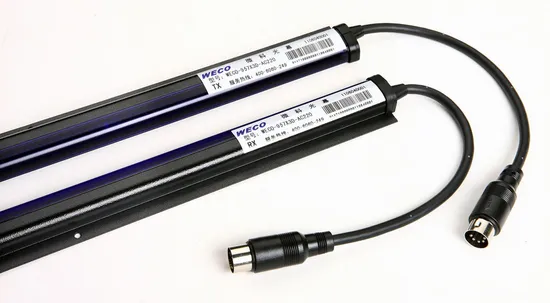

3D Protection Photocell Door Sensor Banner Safety Light Curtains Easy Installation

WECO-917/957MD-3D is an upgrade model compare to parted 3D sensor, which is applied to high-end occasions.

Advantages
3D protection, detected to the stereoscopic area
Easy Installation, same as common products.


Features

Technical Feature		WECO-917MD-3D	WECO-957MD-3D
Number of Infra Red Diodes		32 Diodes
Response Time	Relay output	61ms
	Transistor output	37ms
Sacanning Beams		154-94 beams
Detecting Height		20~1840mm
2D detecting Range		0~4m
Light Immunity		100000Lux	sunlightproof
Operation Temperature		-20ºC-+65ºC
Protection Level		IP54
EN12015, EN12016		General Circuit Level
Voice Reminder		after continuous detection for 15s, buzzer ON.
LED Interpretation		1. Yellow LED and Red LED in Receiver on when blocked or in malfunction.
		2. Yellow LED in receiver on and Red LED in receiver off without blocking.

Installation dimension


LED Indicator Function

Installation
1. The door detector should be installed on both side of car door, as close to the forward edge of the car door in order to prevent the infrared being obstructed by the landing door and shoot out with the angel of 45°.

2. During the installation make sure the two sides are in a same hotizontal up and down. Power ON after installation.
3. Ensure there are no obstalces in front of the landing door, make a round closing and opening several times by manual operating and observe if the process goes smoothly.

4. Keep the elevator in the same leveling position. Do 3D self- learning configuration. Two sensitive range for your choices.

5. Factory reset: ( only do this step if you want to back to factory setting, otherwise go to step 6). Power off the dorr detector, turn the switch 4 to ON, then power on the door detector, the device is entering the factory reset, wait 1s when hearing the buzzer beep, turn the switch 4 to OFF, door detector back to normal state.

6. Normal running stute.
Keep all switches to OFF, let the door detector back to normal state.

---
