Sintered titanium porous plate for PEMFC From Toptitech

Product Details

Product Description

Product Description
Product Introduction

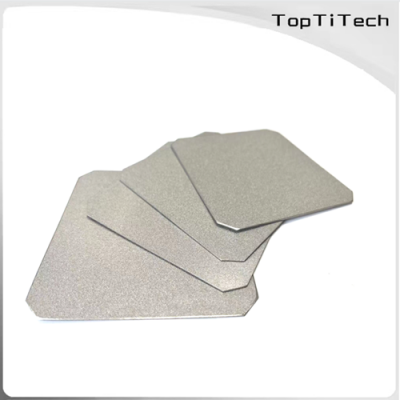

Sintered titanium porous plate for PEMFC is a porous material that is created from high-quality, spherical, and high-purity titanium powder as the raw material. It is rigidified by forging and sintering it at high temperatures.
Low density, high specific strength, good corrosion resistance, and good biocompatibility are the qualities of sintered titanium porous plates for PEMFC.
Parameters:
Brand: TopTiTech
Materials: pure titanium powder
Filter rating: 0.22um-100um
Porosity: 25-45%
Penetrability: 3-800M³/M²hKPa
Working pressure: 2.5MPa
Working temperature: ≦300℃
Shape: Round disc、sheet、tube、round bar、cap
Specific surface area: 10-40cm²/cm³
Features：
1. High flow rate, high resistance to high temperatures and pressures.
2. Resilient to the majority of corrosive fluids.
3. Even pore distribution and good air permeability.
4. Stable form and strong component strength.
5. Very strong mechanical resistance.
6. Consistent filtration precision even after numerous washings.
7. Backwashing assistance with minimal manual upkeep and expense.
According to their physical and structural characteristics, titanium sintered porous materials are mostly used for filtering materials, electrodes, heat-transfer materials, catalyst carrier materials, and noise-canceling materials.
What exactly does sintering entail?
It is the process of combining small particles into a single solid without actually melting the material by applying pressure and heat to the mixture. Ceramics, metals, plastics, and a few other types of materials are among the particles that can be sintered together.
This procedure is particularly crucial in creating discrete particles as a unit. You can make sintered metal filters with it.
The high temperature heating of the compaction contacts causes the constituent materials to fuse together as the materials eventually become wet. The temperature of the furnace, the temperature of the atmosphere, and the temperature of the contacts are all in the heat and are the critical elements of the process.
Package and Shipment
1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.
2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the designated place of the customer without damage.
