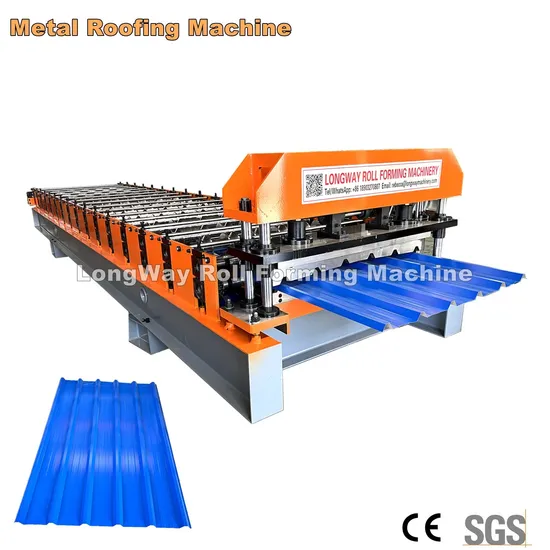

Building Materials Machine T30 Trapezoidal Zinc Roofing Steel Sheet Profiling Making Machine

Product Description

Product Description
The T30 Trapezoidal Zinc Roofing Steel Sheet Profiling Making Machine is a highly advanced and efficient solution for producing high-quality steel roofing sheets. Here are its key selling points:
High-Quality Output: Designed to produce durable and aesthetically pleasing glazed steel roofing tiles, which are widely popular in European markets for their weather resistance and longevity.
Versatility: Capable of processing various materials, including galvanized steel, aluminum, and color-coated coils, allowing for customization to meet diverse customer needs.
Advanced Automation: Equipped with PLC and HMI systems, ensuring precise control, easy operation, and minimal manual intervention.
Energy Efficiency: Designed to minimize energy consumption, reducing operational costs and environmental impact.
Detailed Photos
Product Parameters
Working Process
Uncoiling → Feeding material into machine →Roll forming → Hydraulic cutting →Products receiving table

Raw Material	Coil Type	PPGI,PPGL,GI
	Width	1000/1200/1220mm
	Thickness range	29-22 Gauge (0.3-0.6mm)
Power Requirement	Voltage	380v/3ph/50hz(Customized)
	Main Motor power	5.5kw
	Cutter power	4kw
Forming speed		15-20m/min
Machine Frame		350mm H Beam Structure
Thickness of structure		18 mm Welded Steel Middle Support Plate
Forming shaft		75mm solid shaft with heat treatment
Material Of Rollers		High Grade 45# Forged Steel
Forming stations		14-18 rows Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision
Transmission Way		Chain drive 1 inch (Double Chain)
Type of cutting		Hydraulic Pillar type and length-set cutting
Control system		PLC Delta and Inverter Delta
Screen		Touch screen
Dimension(Approx)		8.8m×1.5m×1.2m
Total weight (Approx)		5.6T

Installation Instructions
Applications of Roofing Sheet Forming Machine
This series of the profile is designed to be economical roofing panels for residential, industrial, and commercial projects.
A minimum of 0.30mm and a maximum of 0.7mm gives more resilience to damage.
Packaging & Shipping
Anti-Corrosion Protection: Spraying anti-corrosive oil on rollers to prevent oxidation during shipping, ensuring long-lasting performance.
Oxidation Prevention: Wrapping the entire machine with isolation film to safeguard against oxidation during transit.
Cost-Effective Shipping: Optimized space planning to minimize transportation costs for customers.
Secure Transit: Properly fixed and secured to prevent any damage during transportation, ensuring the machine arrives in perfect condition.
Spraying anti-corrosive oil on rollers to prevent rollers oxidation during shipping

---
