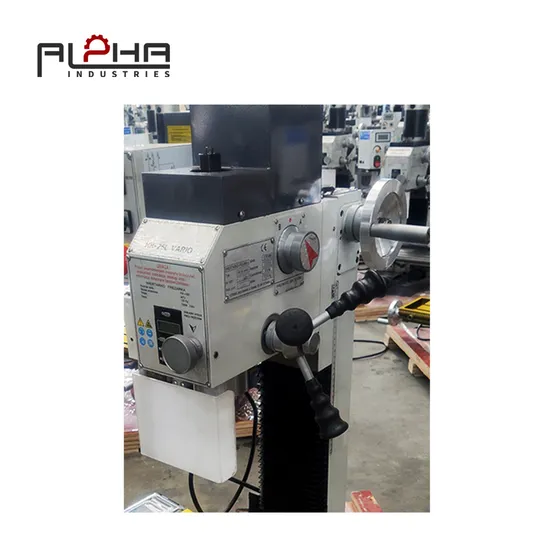

Hot Selling Bf20-Bf20L-Bf25-Bf25L-Bf32-Bf32L Machine Lathe Drilling Milling Machine

Product Description

Product Parameters

Standard Accessories Draw bar Morse taper MT2/ B16-M10 speed display depth display

Optional Accessories Morse collet chuck MT2/M10(5pcs/set) End mill cutter kit HSS 12pcs/set Keyless chuck 1-13mm/B16 Millingchuck kit Q24-16(8pcs/set) Machine vice QG100 Facemilling cutter o63/MT2 Stand &chip tray

Model NO.	BF20/BF20L/BF25/BF25L/BF32/BF32L	Controlling Mode	Artificial
Automatic Grade	Manual	Precision	High Precision
Certification	CE, ISO 9001	Condition	New
Specification	510x550x760mm	Trademark	Alpha industries
Origin	China	Production Capacity	100 Sets/Year

Technical Parameters
Model No.	Unit	BF20/BF20L	BF25/BF25L BF32/BF32L
CAPACITY
drilling capacity(max.)	mm	20	20	32
milling capacity cutter head(max.)	mm	63	63	76
milling capacity end mill cutter(max.)	mm	20	20	20
SPINDLE HOLDING FIXTURE
spindle taper		MT2/M10	MT3/M12 MT3/M12
sleeve diameter	mm	60	60 70
sleeve travel	mm	50	50 50
distance spindle-column	mm	201	201 240
DRILL-MILL HEAD
spindle inclined angle		±90	±90	±90
spindle speed	rpm	L:90-1480 H:150-3000	L:90-1480 H:150-3000	L:50-2250 H:50-5500
tabel(L×W)	mm	500×180/700×180	500×180/700×180	700×210/900×210
Y-axis travel	mm	175	175	210
X-axis travel	mm	280/480	280/480	450/650
Z-axis travel	mm	380	380	380
T-slot size/distance/number	mm	12/63/3	12/63/3 12/63/3
distance spindle-cross table(max.)	mm	380	380 360
ELECTRIC SUPPLY
motor	W	850	850 1100
DIMENSIONS AND WEIGHT
size(L×W×H)	mm	722×550×770	722×550×770 772×870×710
packing size(L×W×H)	mm	620×560×920	620×560×920 710×890×860
N.W./G.W.	kg	105/145	105/145 220/265

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
