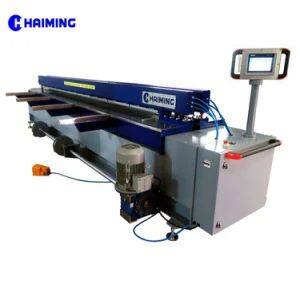

CE High Efficiency low price S-PH3000A plastic welding machine price
Features
The new steel structure, patented mechanical synchronous drive technology, through the proportional valve, in the weld area to achieve uniform pressure.
suitable for all types of thermo plastic sheet (PP-R, PP-H, PP-B, PP-S, HD-PE, PVC-U, PVC-RL, PVDF…).
Control system Siemens PLC, 7-inch color touch screen.
Data parameters are automatically selected according to the material a particular welding pressure, temperature and time.
3mm-30mm welding capabilities, special welding thickness of 40 up to 60mm.
Range of Application
Manufacturing water tanks and containers, plastic devices, ventilation systems, water treatment systems,Scrubber, environmental technology, swimming pool, transportation and logistics.
Technical Data
Model
| S-PH3000A
| S-PH4000A
| S-PH6000A
|
Machine Length (mm)
| 4300
| 5300
| 7500
|
Machine Width (mm)
| 1900
| 1900
| 1900
|
Machine Height (mm)
| 1100
| 1150
| 1200
|
Total Weight approx. (kg)
| 2800
| 3600
| 6000
|
Welding materials
| PP PE PVDF…
| PP PE PVDF…
| PP PE PVDF…
|
Welding thickness(mm)
| 3-30
| 3-30
| 3-30
|
Welding Length(mm)
| 3025
| 4025
| 6025
|
Minimum diameter of pipe(mm)
| 360
| 480
| 580
|
Air pressure
| 8,0 bar
| 8,0 bar
| 8,0 bar
|
Power supply standard
| 380
| 380
| 380
|
Heating element power(KW)
| 4
| 5
| 8
|
Reel motor power(KW)
| 3
| 3
| 3
|
The heating element size (mm)
| 3200 X 22 X 55
| 4200 X 22 X 55
| 6200 X 22 X 55
|
Welding area lighting
| LED
| LED
| LED
|
Why choose us?
1.Our equipment has strong competitiveness, our equipment already ahead, our device has the following characteristics:
The only use of advanced technology from Germany
The only electrical integration automated system
The only design
The only practical new technology
2. Our factory is the first one to manufacture the automatic plastic butt welding machine in China and service this line More than decade . And our factory have many skilful peration of workers and the stability of the scale of production. And we also have many outstanding engineers,they can help you design the machines you want.
3.Genuine products with excellent quality and competitive price.
4.Cooperating with the customers all over the world and knowing the markets very well.
5.After-Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
>>
