Rhinoceros Chinese 1.2ton Mini Excavator for Sale

Product Description

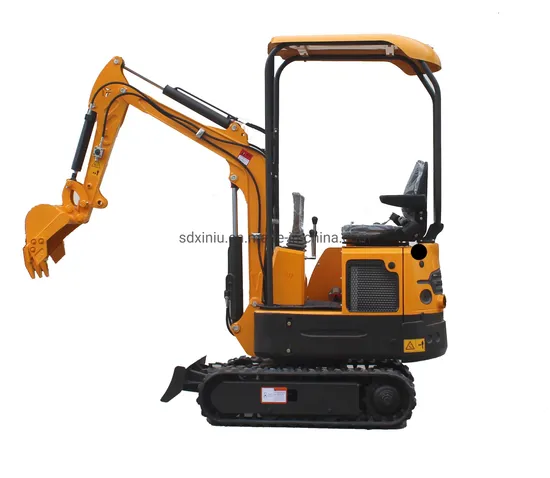

RHINOCEROS XN12 1.2TON MINI EXCAVATOR
This excavator is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse, digging trench It is with small Japan Yanmar engine,three cylinders, simple design, easy to maintain.




Detailed Images

Model	XN12	MAIN DEMENSIONS
Manufacturer	SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD	Overall dimension( LxWxH)	2770x896x1490 mm
Brand	RHINOCEROS	Total length of track	1230mm
Operating Weight	1040kg	Platform ground clearance	380 mm
Digging bucket capacity	0.025cbm	Platform back turning radius	784 mm
Bucket width	380mm	Chassis width	896 mm
Engine	Yanmar engine 3 cylinders	Track width	180 mm
Rated power	10 kw/2200r/min	Chassis ground clearance	132 mm
Displacement	0.211 L	Track height	320 mm
Bore stroke	70x55	Diesel tank capacity	10 L
Main pump	ZANEDA	Hydraulic oil tank capacity	16L
Displacement	6.8ml/r	OPERATING RANGE	16L
Hydraulic system pressure	16 Mpa	Max. Digging depth	1650 mm
Swing motor	SJ-TECH (MP-1-160)	Max. Digging height	2610 mm
Traveling motor	KERSEN (OMS-2450)	Max. Dumping height	1850 mm
Travel speed	1.5km/h	Max. Digging radius on ground	2850 mm
		Min. Rotation radius	1330 mm
		Max. Upgrade height of bulldozer blade	345 mm
		Max. Digging depth of bulldozer blade	255 mm

Packing & Delivery
1.Standard packing,the machine body is without packing,but the will be well fastened and fixed in the container by wire rope.
2.Spare parts or wearing parts will be packed in wood box or paper carton.
3.Standard shipping method is by container,most of our excavator can be load in container


Our Company
Is we are professional manufacturer of construction & engineering machinery with 25 years in china. Products covers wheel excavator 8 most of the machines are with CE certificate, our company is with ISO certificated. The machine has good market all over the world, hope we can cooperate this time





Certifications

Customers Visited
Bauma Fair & Canton Fair & Customers Visited our factory

---
