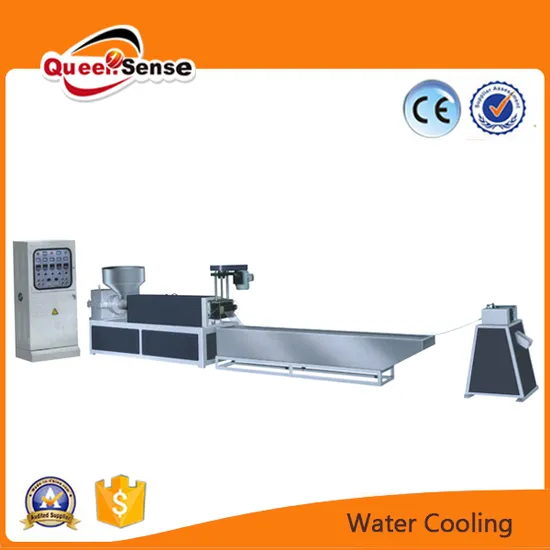

Water Cooling Waste Plastic Film Recycling Machine

US$6,000.00-9,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SJ-B90/100/110/120
Screw
Single-Screw
Automation
Automation
Computerized
Non-Computerized
Certification
QS, GMP
Screw Diameter
90mm/100/110/120
Screw Speed
10-110r/Min
Main Motor Power
22kw
Total Weight
2000kg
Transport Package
Wooden Box
Specification
CE
Trademark
QUEENSENSE
Origin
Wenzhou China
HS Code
8477201000
Production Capacity
1000PCS/Year

Product Description


This raw materials like waste films of HDPE and LDPE are extruded through the extruder, and then are cooled through wind and cut hotly into granules, featuring in fine quality, bubble free and moisture free. The machine is equipped with a forced feeder, fast mesh changer and automatic rhermocontroller. Characteristics: Main Technical VariablesMain Technical Variables:

Model		 SJ-A90 SJ-A100 SJ-A110 SJ-A120
Type Diameter of Screw Stem φ90 φ100 φ110 φ120
Major Diameter Ratio of Screw Stem (L/D) L/D 20:1 -22:1 L/D 20:1 -22:1 L/D 20:1 -22:1 L/D 20:1 -22:1
Rational Speed of Screw Stem 10-100r/min 10-100r/min 10-100r/min 10-100r/min
Main Motor Power 22kw 30kw 37kw 45kw
Output 68kg/h 95kg/h 120kg/h 135kg/h
Weight of overall(kg) 2600kg 2800kg 3000kg 3200kg
Cover dimensions (l×w×h) (mm) 4000×1500×1800 4000×1500×1800 4000×1500×1800 4600×1500×1800
