High Quality 0.5-1.8m Grabbing Diameter Europe Quick Hitch Bale Grab for 15-180HP Agricultural Wheel Farm Tractor Front End Loader

Product Description

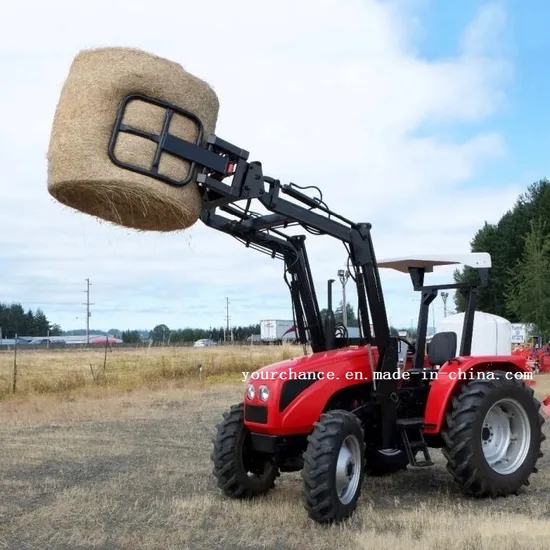

Hot selling Tractor Front end loader attached bale grab for grabbing and transporting Round hay bale
Our BG Series Bale Grab Usage, Main Features, Advantage and Specificaiton:
Bale Grab is hydraulic type implement which mounted on the tractor front end loader, used for moving round hay bale and mower size square bale, come with Standard Quick Hitch type, can quick hitch on the tractor front end loader and exchange other implements.
Features of Front End Loader Bale Grab
TZ Series Front End Loader, match for tractor is used in shoveling, stacking or short-distance transporting of loose material like mud, sand and stone, garbage etc.
Different work devices are optional, such as Standard Bucket, 4in1 combine bucket, Pallet fork, Log/Timber Grab, Bale Fork, Manure Fork, Silage Grab, Grating cover bucket, Bale Grab, Multi-purpose Bale Fork, Stone/Rock Bucket, Pallet handler, Snow blade, Doze blade, Grade blade, Scraper blade,Road/Street sweeper, Snow Sweeper, Snow Blower, etc
Advantages of Front end loader Bale Grab
1.Euro quick-release frame,simple implement exchange. Suitable for other implements with Euro Hooks.
2.High-performance European brand hydraulic system is adopted. 3rd hydraulic circuit is optional adds usability to usage of hydraulically operated implements.
3.Mechanical parallel enables perfect angle correction of he implement a all lift heights.
4.Stone bucket is professional for finishing Stone shoveling, stacking and short-distance transport works.
Main Specification of Tractor Front end loader Attached Bale Grab

Front End Loader Model		Unit	TZ02D	TZ03D	TZ04D		TZ06D	TZ08D	TZ10D		TZ12D	TZ16D
Matching Tractor		hp	15-25	20- 40	30-55		45-60	55-75	70-100		90-140	140-180
Rated Lifting Capacity		kg	200	300	400		600	800	1000		1200	1600
Max.Lifting height		mm	2350	2550	2740		3010	3400	3710		3970	4260
Max. Dumping height		mm	1730	1840	2100		2370	2480	2720		3000	3200
Overloading height		mm	2170	2370	2560		2830	3220	3490		3770	4000
Dumping distance		mm	370	500	600		640	690	740		900	900
Ground Clearance @Arm pivot pin		mm	1120	1200	1360		1500	1630	1780		1930	1930
Digging depth		mm	90	100	100		120	140	180		200	200
Max.Lifting force	Q1	kg	1821	2224	2144		2150	1997	2308		2403	2620
	Q2	kg	1184	1474	1321		1286	1187	1452		1690	1850
Bucket Model (standard)			02DP125	04DP125	04DP140		06DP150	08DP160	08DP170		12DP200	16DP240
Bucket width (standard)		mm	1250	1250	1400		1500	1600	1700		2000	2400
Bucket Capacity		m3	0.16	0.18	0.21		0.35	0.40	0.44		0.7	1.6
Max Tip in Angle		degree °	48	48	48		48	54	54		54	54
Dump Angle		degree °	52	58	58		58	58	58		58	58
Crowd angle @lowered lift arm		degree °	140	135	135		135	135	145		145	145
Rated Lifting Capacity		kg	200	300	400		600	800	1000		1200	1600
Bale Grab
Model		BG05				BG10				BG15
Grabbing Bale Diameter (mm)		500-850				600-1250				600-1800
Rated Grabbing Weight (kg)		400				750				1400
Match tractor power (hp)		25-65				65-110				110-180
Match Front end loader Model		TZ03D~TZ06D				TZ08D~TZ10D				TZ12D~TZ16D
Weight (kg)		150				180				370

Bale Grab by Iron crate packing or install on tractor in Nude packing :
High quality Tractor Front Bale Grab have ISO,CE, PVOC COC, CO etc certificates:
We manufacture full series Front end loader and vairous attchments,match for 15-180HP tractor:
Best price will be quoted for you as soon as receive your Requirement !

---
