Premium Customized Carbon Fiber Composite Autoclave PED Certificate

Product Description

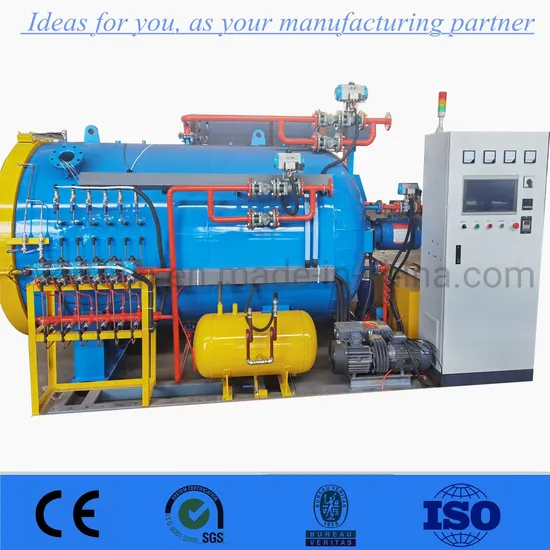

EVERTECH Autoclave is a sealed pressure vessel which can be heated by a forced convection heating unit, where temperature, pressure and vacuum can be controlled effectively. By means of an advanced design, consisting of a forced convection fun and motor unit, output heating power system can be adjusted 0-100%,proportional control of the pressurization, cooling and exhaust components. It can obtain an uniform temperature and pressure according to the process curve. Temperature is check in heating, keeping, and cooling phase. The heating / cooling gradients can be set by operator. Pressure is adjusted in pressurization, keeping, release phase.
Mainly device into below systems
1. tightness of tank :it is made from tank ,tank door ,high temperature motor ,air duct heat partition layer to form into one high pressure resistant ,high temperature tank
2. safety interlock : it is made from pressure automatic interlock ,manual interlock ,over pressure alarm device.
3. Quickly open door device :manual or automatic quickly open design ,even If power off ,it can start and close the door
4. Sealing device: the door adopt silica gel filling air ,it can bear 500 degree ,forming into one high temperature high pressure sealed container
5. Pressure system: pressure transfer and control system include air compressor ,storage tank ,pressure control valve ,pipe ,pressure transformer ,and pressure gauge .
6. Heating system: stainless steel heating pipe ,high temperature fan ,wind plate ,insulation layer ,temperature control system .heating power satisfy with inside tank max temperature requirement and raising temperature
7. Temperature circulation system :it made up of circulation fan ,wind plate ,and guide flow cover to improve heating transfer and circulation form into uniform temperature
8. Vacuum system :it made up of vacuum pump ,pipe ,vacuum gauge ,vacuum vale ,to supply composite material vacuum condition
9. Automatic control system: adopt PLD and fuzzy control ,to realize the pressure ,temperature ,cooling and so on full process high -precision control and in time record.
Main application 1. Mainly used for rubber products, hoses, rubber roller and other vulcanization2. Rubber vulcanizing autoclave is widely cured with rubber products for mechanical properties such as: new tire curing, tire refurbishment, hose, roller, cable, pipe vulcanization3. Capsules, rubber sheet, rubber gloves, rubber shoes, tape, lined rubber, rubber cloth, rubber and other products vulcanization.4. Rubber vulcanizing autoclave is also widely used for wood degreasing, hydrolysis, wood dipping, wood shaping, oxidizing, autoclaving, wood cooking, wood impregnation and wood drying, etc.
Technical Parameters

Model	Effective Diameter	Effective Length	Design Temp.	Design Pressure	Pres. & Depres. Rate	Heating & Cooling Rate
ET-CA1850	1800 mm	5000 mm	250-400 °C	1.2-4.0 MPa	0-0.1 MPa/min	0.5-5 °C/min
ET-CA1860	1800 mm	6000 mm	250-400 °C	1.2-4.0 MPa	0-0.1 MPa/min	0.5-5 °C/min
ET-CA1880	1800 mm	8000 mm	250-400 °C	1.2-4.0 MPa	0-0.1 MPa/min	0.5-5 °C/min
ET-CA2030	2000 mm	3000 mm	250-400 °C	1.2-4.0 MPa	0-0.1 MPa/min	0.5-5 °C/min
ET-CA2040	2000 mm	4000 mm	250-400 °C	1.2-4.0 MPa	0-0.1 MPa/min	0.5-5 °C/min
ET-CA2060	2000 mm	6000 mm	250-400 °C	1.2-4.0 MPa	0-0.1 MPa/min	0.5-5 °C/min
ET-CA2080	2000 mm	8000 mm	250-400 °C	1.2-4.0 MPa	0-0.1 MPa/min	0.5-5 °C/min
ET-CA2550	2500 mm	5000 mm	250-400 °C	1.2-4.0 MPa	0-0.1 MPa/min	0.5-5 °C/min
ET-CA2560	2500 mm	6000 mm	250-400 °C	1.2-4.0 MPa	0-0.1 MPa/min	0.5-5 °C/min
ET-CA25100	2500 mm	10000 mm	250-400 °C	1.2-4.0 MPa	0-0.1 MPa/min	0.5-5 °C/min
ET-CA2880	2800 mm	8000 mm	250-400 °C	1.2-4.0 MPa	0-0.1 MPa/min	0.5-5 °C/min
ET-CA3050	3000 mm	5000 mm	250-400 °C	1.2-4.0 MPa	0-0.1 MPa/min	0.5-5 °C/min
ET-CA3060	3000 mm	6000 mm	250-400 °C	1.2-4.0 MPa	0-0.1 MPa/min	0.5-5 °C/min
ET-CA3080	3000 mm	8000 mm	250-400 °C	1.2-4.0 MPa	0-0.1 MPa/min	0.5-5 °C/min
ET-CA30100	3000 mm	10000 mm	250-400 °C	1.2-4.0 MPa	0-0.1 MPa/min	0.5-5 °C/min
ET-CA30120	3000 mm	12000 mm	250-400 °C	1.2-4.0 MPa	0-0.1 MPa/min	0.5-5 °C/min
ET-CA32100	3200 mm	10000 mm	250-400 °C	1.2-4.0 MPa	0-0.1 MPa/min	0.5-5 °C/mi

Packaging & Shipping
Our machines and equipments are packed in standard package that fit for long distance road transportation and shipping. We ensure our customers can receive the undamaged machine in good condition.
More than 20 years, our products and services have been enjoying a good reputation in this import and export market.We provide the best pre-sale, sale and after-sale service.
We have a professional working team that can design for you, to ensure that you buy the best quality and fittest machine in least money.
After sale, we provide one-year warranty to make sure that your machine runs functionally and consistently. We also provide lifelong services and spare parts for the machine.
If you are interested in the composite autoclave, welcome to contact me to get more information. We are skillful manufacturer.

---
