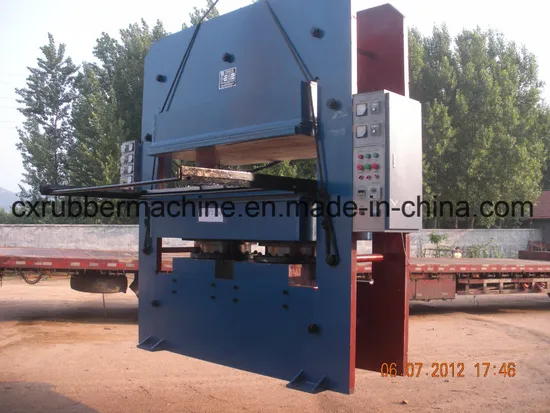

50t Rubber Tile Press/Rubber Tile Vulcanizing Press

Product Description

50t Rubber Tile Press/Rubber Tile Vulcanizing Press
a.rubber vulcanizing machine
1.Material of steel plate:
We use hight quality carbon steel Q-235(produce by Jigang Group Co.,Ltd which is a famous company) ,more thicker than other supplier,after shot blasting ,smooth, it is strong enough than common steel.
2.Weldment of frame : world technique
Welded together as a whole part,Stewing fire treatment after weldment.
(Carbon dioxide gas shielded welding,alloyed welding wire).
submerged arc welding, VSR treatment after weldment.
3.Piston:
the material of plunger is Chilled cast iron, after polishing,grinding treatment and resist compression test,make the surface smooth,and anti-abrasion.
4.Heating way&precision temperature control:
Steam ,oil or Electric (We use high quality heating pipe to keep heating stability)
range of temperature:0-300 °C (can be adjustment if you need 400 °C ,we can do it )
Plate temperature tolerance: ±0.1°C (very precise)other factory just is ±3°C
Also we can produce the machine with water cooling system.
5.Hydraulic system: (PLC control)
the professional hydraulic components, stable and reliable and quality .Pressure sensor control system pressure and never off pressure.
We use OMRON,SIMENS CHNT , SCHNEIDER ect brand electric parts.
6.There are more advanced technical information as our core patents,and not showed in the description,please send email to us.
b.rubber tile making machine
Rubber tile is made of two layers of different rubber granulates, color granulates are fine granulates or rubber wire in surface, the bottom layer is thick rubber granulates or rubber wire.
Following is the main processes:
1.conching: Put the rubber granulates and stain into the stirring barrel to stir,and then put into the adhesive to stir,this process requires for 4-6 minutes( because the adhesive is easy to cure,
so stir it when use ).
2.Weighing raw materials: weight the rubber granulates stirred, according to the granulates' thickness requirement of the tiles .
3. Paving and pressing: Paving the rubber granulates weighted on the mold, then floated it by trowel. Firstly paving the surface rubber granulates which is fine and color, then the thickness and black.
4. Vulcanization molding: Covering anti adhesion cloth, pushing the mold into vulcanizer to vulcanize, the time of vulcanization accord to the thickness of the rubber tiles, in general, 3-8 minutes finished. After that, Mold separate automatic, then remove floor tile on the
shelves to dry.
5. Inspecting: Inspect the surface of the floor tiles formity, no aberration, no flaw, line with the product quality.
Welcome to visit our company!

Model	XLB-D/Q350X350X1(2)	XLB-D/Q400X400X2	XLB-D/Q550X550X2	XLB-D/Q650X650X2	XLB-D/Q750X850X2(4)
Nominal pressure(MN)	0.25	0.50	0.60/0.80	1.00	1.60
Plate size(mm)	350X350	400X400	550X550	650X650	750X850
Plate clearance(mm)	125	125	125	125	125
Working layer number	1(2)	2	2	2	2(4)
Plate unit pressure(Mpa)	1.56	3.1	3.2	2.8	2.5
L	1200	1400	1650	1410	1900
W	400	550	600	680	950
H	1300	1500	1600	1750	2000
Weight(kg)	800	1300	1500	3500	6500(7500)

We can design the machine according to customer's request.

---
