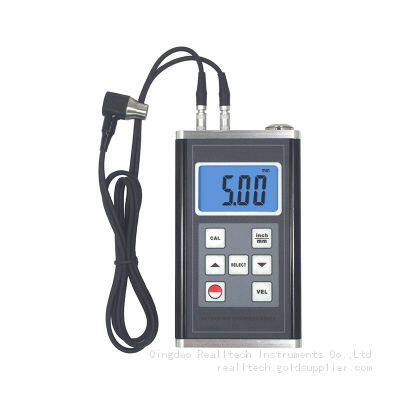

Ultrasonic Thickness Meter RUM7401
1.Spec:
Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks,etc.in industries of petroleum, shipbuilding, power station, and machine manufacturing.
2.Features:
* Using the latest high performance and low power consumption microprocessor technology.
* Bidirectional measurement, for materials within measurement range, thickness is measurable with know velocity, Conversely velocity is measurable with know thickness.
* Automatic memory material code and sound velocity value, convenient to use.
* Coupling symbol indication.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
3.Specifications:
Display: Large Screen LCD
Housing Material: Aluminum Alloy
Measuring Range: 0.75~400mm(45#steel,Depend on Probe)
Resolution: 0.01mm/0.1mm/0.001 inch
Accuracy: ±(0.5%n+0.05)
Sound Velocity: 1000~9,990m/s
Lower Limit of Pipes: Φ15x2.0mm Φ20x3.0mm(Determined By Transducer)
Operating Conditions: Temperature: 0~40º; Humidity: <85%RH
Power Supply: 2x1.5V AA(UM-3)Battery
Dimensions: 130x76x32 mm
Weight: 340g(Not Including Batteries)
>>
