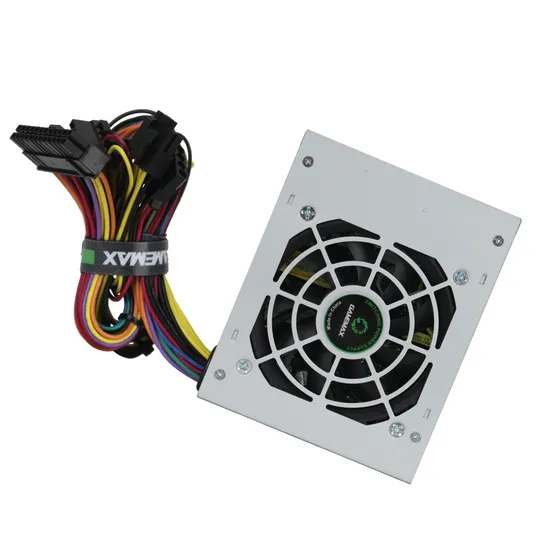

Micro Sfx Power Supply with 80+Bronze for Sff PC Case

Negotiable 500 Pieces (MOQ)

Basic Info.

Model NO.
GS-300 80+ Bronze
Power
300-500W
ATX Standard
ATX 12V 2.2
Fan Type
8cm
Fan Size
≤8"
Feature
Active PFC
Hard Disk Interface
2~4
80PLUS Certification
80 PLUS Bronze
Modular
Not Modular
AC Input
Full Range (100-240V)
Efficiency
85%
12V 4+4 Pin
Yes
Service
OEM, ODM
Transport Package
Carton
Specification
0.04cbm
Trademark
GAMEMAX; SOHOO
Origin
China
HS Code
84733090
Production Capacity
200000/Year

Product Description


Key Features
Compatible with ATX 12V 2.3
High-end SECC 0.6mm casing
High-Efficiency - 80+ APFC 85% Certified
Low Noise 8cm Fan with intelligent fan speed control
Honeycomb ventilation design for optimal heat dissipation
Active Power Factor rate up to 0.99
OPP/OVP/UVP/SCP electrical protection included
Safety / EMI Approvals: CE,FCC,CB
PSU Specifications
AC INPUT: 100-240 VAC 6~3A 50-60Hz
DC
Output
Max
+3.3V +5V +12V1 -12V +5VSB
15A 15A 20A 0.5A 2.5A
300W
