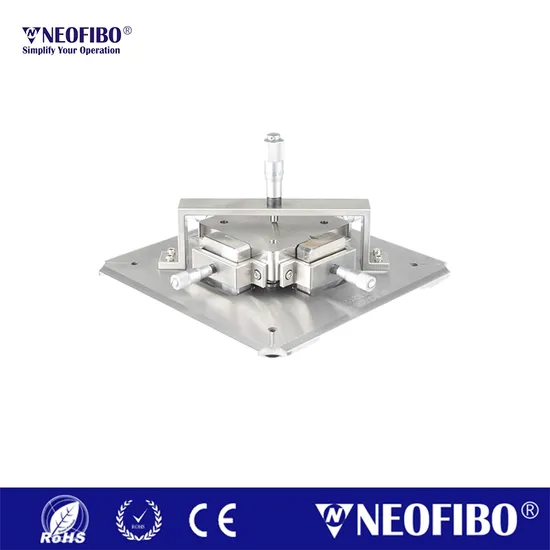

BFJIG-200F-SQ Optical Fiber Cable Connector Grinding Jig for Polisher Bare Coating for Polish Jig Bare Fiber Optic Foursquare Pressure Polishing Fixture

Product Description

NEOFIBO BFJIG-200F-SQ Foursquare Bare Coating for Polish Jig Bare Fiber Optic Polishing FixtureNeofibo : Your Reliable Supplier
> Provide you with reliable polishing solution;
> 17-year Manufacturing Experience for OEM/ODM polishing program;
> Independent research and development patent - Neoholder®;
> Products have CE, ROHS certification;
> Support online video synchronization inspection machine;
> Equipment test report and operation guide can be provided;
> SGS certified factory, delivery speed and secure,50 units in stock;
> 30 days quality problems can be returned;
Products Description
Description:
>Neofibo Polishing Fixture;>Designed specifically for bare fiber polishing>Suitable for bare fiber with core diameter of 0.3-1.5mm>Square diamond-shaped V-slot to hold multip bare fibers>Polishing 200-400 bare fibers or single core fiber an one time>Single-core, dual-core and four-core clamping solutions are available upon request>Four-step poishing method to precisely control the polishing volume to 0.01mm per step
To know more products, please check quick links below connected to our homepage. Feel free to contact us.

Fiber Polishing Machine	Fiber Polishing Fixture	Fiber Production Line Equipment	PM Fiber Alignment Systerm	Fiber Polishing Consumable
Fiber Cleaning Solution	Optical Power Meter	Fiber Tool	Fiber Optic Connectors and Apater	Indoor Cables

Helpful Links
For instant communication, please click hereFor our catalogs, please click hereFor our home page, please click here
If you can't find a fixture suitable for you, please contact the supplier, we have professional staff to provide you with services.
Specification

Model	BFJIG-200F-SQ
Brand	Neofibo
Application	Polishing 0.3 ~ 1.5 mm bare fiber
Fiber Type	Glass fiber, plastic optical fiber
Capacity	200 fiber per cycle
End-face	PC or APC
Fiber Diameter	Diameter 0.30~1.50 mm
Color	Silver
Material	Stainless Steel
Dimension (L*W*H)	174*174*100 mm
Net Weight (kg)	3.0 kgs
Gross Weight (kg)	3.5 kgs
Suitable machines	NEOPL-2000A, NEOPL-2000P, SFP-550

Click Here And View More >>>Go
Application
> Mainly used for polishing fiber optic connector, patchcord, ferrule end face;> Or non-standard materials like metal, glass, ceramic end face polishing;> Or precision parts end face polishing. Polishing Effect
Contact Us >>>Go About Us
Shenzhen Neofibo Technology Limited was founded in 2008, located in Shenzhen China. Neofibo's aim is to make our customers' fiber connectivity more reliable. During last 17 years, Neofibo has dedicated to become the professional supplier for fiber optic polishing solutions. Neofibo is focusing on the field of fiber optic polishing solutions, specializes in manufacturing fiber optic polishing machine, designs various optical fiber connector polishing fixtures, provides completed polishing processes and materials for all kinds of fiber optic connectors and related fiber products.
We have been comprised of a group of experienced fiber optic professionals
in areas of optical connector polishing and assembling, outside plant installation, transmission system, datacomms, CATV and testing.
Neofibo can provide not only specialized products, but also technical services and R & D support.
Neofibo should be your cooperative partner forever
FAQ
1.Polished ferrules could not reach required shape or quality.
(1)Film is used over 40 times.
(2)Water doesn't be used.
(3)Films are not cleaned completely.
(4)Ferrules and jig are not fixed correctly.
(5)The distance adjustment between screw top and Plane A is not correct.
2.Bad quality for the polished surface.
(1)Film is used over 40 times.
(2)Polishing liquid is not used.
(3)Film is dirty.
(4)Ferrules are not cleaned completely.
(5)Scraped by film when pulling out the ferrules.
3.How can we guarantee quality?
(1)Always a pre-production sample before mass production;
(2)Always final Inspection before shipment;
4.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese Please contact us if you have any questions or needs.

---
