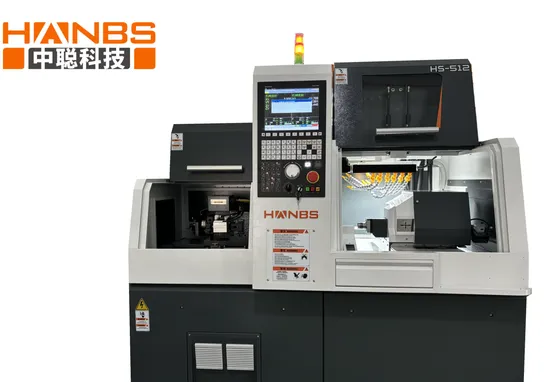

Hanbs Excellent Accuracy and Material Properties Swiss Type CNC Lathe with Strict Requirments HS-512

Product Description

HANBS Excellent Accuracy and Material Properties Swiss Type CNC Lathe with strict requirments HS-512
HS-512 Technical Parameters:
Maximum processing diameter Φ12mm
Maximum processing length(2.5d in the mode without guide bush 60mm
Axial maximum drilling diameter Φ5mm
Axial maximum tapping size M5
Maximum spindle speed(for short-term use only) 10000rpm
Radial maximum drilling diameter Φ5mm
Radial maximum tapping M4
The maximum clamping diameter of the back spindle Φ12mm
The maximum workpiece extension of the back spindle 30mm
The maximum drilling diameter of the back spindle Φ5mm
The maximum tapping diameter of the back spindle M5
The maximum speed of the back spindle(only for short-term only) 12000rpm
The maximum take-out length of the workpiece 40mm
Side powered tool unit 3
Knife row(12*120*5+6*120*1) 5
Fixed knife(Φ25mm*4*2 for the front and back;Φ25mm*4 for the back) 13
The maximum number of tools installed as standard 21
Z1,Z2,X2,Y Axis fast forward speed 24m/min
X1 Axis fast forward speed 18m/min
Spindle center height 1000mm
Input power 7KW
Weight 1500kg
Dimensions(WXDXH) 1950*1100*1700mm
Product Uses

The following are four specific application scenarios of NCN Lathe:
New energy vehicles
medical treatment
Communication accessories
Household appliances
Electronic cigarette
Precision component processing
hydraulic pressure
Pneumatic
FAQ
Q1.Are you manufacturer or trading company?
A. We are professional machine tool manufacturer, we set export sales center & showroom in Dongguan city.
Q2. How can I place order?
A: You can contact us by email about your order details, or place order on line. Thank you!
Q3. Can you give the favourable price?
A. We have different series machine,but we can recomand you machine according to your products and the quote favourable price for you.
Q4.Can you provide some certificate?
A. We can provide certificate which you need.
Q5.What kind of products your machine can processing?
A.Maxi processing diameter is46 mm.Mini processing daimeter is 3mm.And you can see the above picture about the samples.
Q6.How will the machine be transported?
A.We transport machine by sea.
Q7.What is the features about the machine?
A.High precision and rigidity,improve customers' production.
Q8.How will the machines be packed?
A.We will fix the machine axial and pack it in wooden cases,make sure that the machine not be damaged.

---
