Hualong Best 5 Axis CNC Bridge Saw Stone Engraving Cutting Machine for Granite Marble Quartz Porcelain America Countertop Processing Machine

Product Description

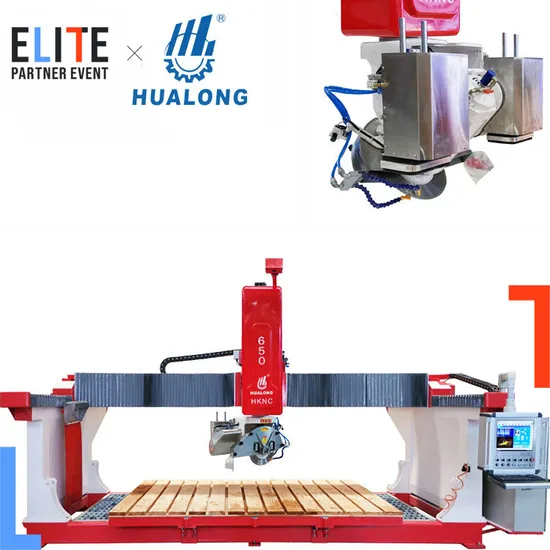

HKNC-650 Data Control Bridge Stone Cutting MachineThe 5 axis bridge saw is CNC control birdge sawing machine with 5 interpolated axis(X, Y, Z, C, A) for processing of marble, granite or other natural and engineered stones. It is supplied with a touch screen of easy and intuitive use to CNC software( CUT CAM) cutting. It can finish lots of complex works, like complex shapes' cutting, curved surface processing, milling, etc. Software/Touch Screen/All 5 axis Servo motors are all imported from Italy.
The features of machine: --0 to 360 degree head rotation and 0 to 90 degree head tilting, any angle's positioning. --0 to 85 degree table tilting, any angle's positioning. --Different languages for easy operation, English, Spanish...--full machine can be loaded inside by a 20GP container, easy to install.
--Full set of CNC hardware and software original from Italy. --Linear guide and rack gear used to ensure machine's longlife using. --Machine can install router to drill holes for coutertop making. --WiFi support, our technician can give remote support for machine running in anywhere if WiFi available. Main Features

1) 5 axis linkage control with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen.
3) Combine fuctions of carving, milling, cutting, drilling, engraving into an organic whole for complex processing.
4) Blade can rotate 0°-360° and tilt 90° for any any direction's and any angle's chamfering cutting.
5) Working platform can tilt 85 degrees, easy for slabs loading.
6) Manual cuts available for simple machining.
7) Vacumm manipulator for workpieces handling.
8) Photo slab for nesting and avoiding defects.
9) Nesting manual / automatic to optimize slab surface usage
10) RTCP tool point tracking function ensure precision machining easy.
11) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.

Parameter:

Diameter of saw blade	mm	ø350-ø650
Dimension of working platform	mm	3500x2100
Max. cutting length	mm	3500
Max. cutting thickness	mm	200
Max. lifting stroke	mm	500
Power of main motor	kw	18.8
Water consumption	m3/h	2
Gross weight	kg	5800
Dimensions (L x W x H)	mm	6300x3600x3100

Detailed Information For Spare Parts:

Control System
Italian ESA operation system and Italian Zeus/Pegasus cad-cam drawing software to fulfil full automatic cutting from beginning to end without manual intervention
Digital Servo Motor
Italian Original ESA Servo motor to guarantee accurate positioning and cutting
Photo Slab System
Detecting slab with camera positioned above the machine and image acquisition software to catch the slab dimensions to be exploited in the best way possible and carry on the cutting avoiding any defects or any veins in the material.
Vacuum Lifter
Suctions cups for lifting and moving cutting pieces in order to exploit the slabs as much as possible.
Blade Presetting Unit (optional)
Automatically measuring blade diameter and diamond tool
Slab Thickness Detector(Optional)
System to automatically detect the thickness of the slab.
Vein Matching Function(Optional)
Easily match up each vein and seam of your project
How It Works?
Rotatable & Tiltable Spindle Head
Application:

---
