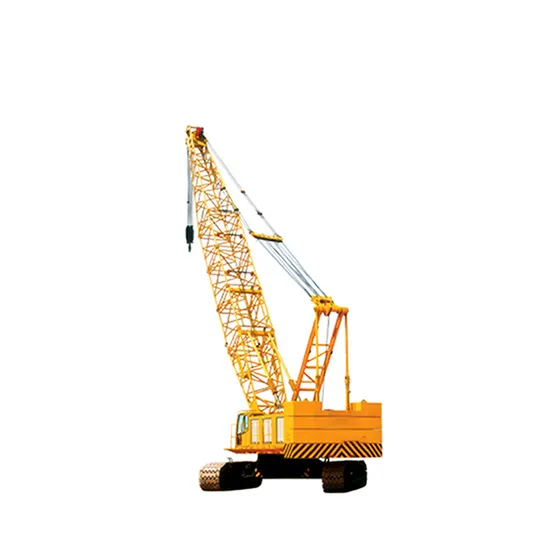

130 Ton Hydraulic Mobile Crawler Crane (XGC130)

Product Description

130 Ton Hydraulic Mobile Crawler Crane (XGC130)
Feasures 1. Optimized design of transport and assembly/ disassembly
* Basic machine is an integrated transport design, without disassembling track frame and boom base, greatly save transport costs and improve the assembly/disassembly efficiency.
* Unique A-frame gantry self-erection technology, no need of cylinder can achieve self- erection, to realize crane quick assembly.
* Single counterweight weighing no more than 4t, small auxiliary lifting equipment can achieve complete counterweight assembly.
2. Opimized hydraulic system design
* Integrated design to reduce failure points, while reserve open space for assembly/ disassembly and maintenance.
* Use of highly integrated LUDV main valve, with the functions of multi-complex operation, control of combined flow, high/low speed selection, to ensure operation efficiency.
* Optional unique independent bypass filtration in the industry, strong magnetic adsorption device, strengthened hydraulic system filtration, and anti-emulsifying ability.
3. Main/ auxiliary hook one-key-switch-over function
One-key-switch is used to easily achieve main/auxiliary hook switch-over, for wider range of applications.

Parameters

Item	Unit	Parameter
Parameter Item	-	XGC130
Max. rated lifting capacity for boom	(t)	130
Max. rated lifting capacity for fixed jib	(t)	18.2
Max. load moment	(t.m)	702
Max. rated lifting capacity for boom single top	(t)	13
Boom length	(m)	19~76
Boom luffing angle	(°)	30~83
Fixed jib length	(m)	13~25
Max. dimension of single unit in transport state(L×W×H)	(m)	10.6×3×3.35
Fixed jib offset angle	(°)	15,30
Max. single line speed for hoist mechanism	(m/min)	110
Max. single line speed for boom luffing mechanism	(m/min)	75.6/62.6
Max. slewing speed	(r/min)	1.3
Max. travel speed	(km/h)	1.4
Grade ability	(%)	30
Mean ground pressure	(MPa)	0.094
Model	-	SC9DK270G3/QSC
Engine power	(kW)	200/183
Emission	-	National III/EU III
Overall crane mass	(t)	121.1(main hook, 19m boom)
Max. mass of single unit in transport state	(t)	32.6
