Garage Door Panel Machine Roller Shutter Door Roll Forming Machine

Product Description

Garage Door Panel Machine Roller Shutter Door Roll Forming Machine
The products produced by Garage Door Panel Machine Roller Shutter Door Roll Forming Machine are bright in colored, against fading, resistant to rust, and be widely used
in shops, working departments, warehouses, and fire partition. Its strength is three times higher than aluminum alloy door. It is consists of Manual Uncoiler , Feeding Table , Main Roll Forming Machine , Hydraulic System , Shearing Mechanism , Computer Control Cabinet .

Specification for Garage Door Panel Machine Roller Shutter Door Roll Forming Machine

No.	Item		Specification
1	Steel coil	Width	Customized
		Material	Ppgi/gi/gl
		Thickness	0.7-1.0mm 0.7-1.2mm
		Hardness	Normal hardness
2	Forming	Frame	300-450mm Height
		Stations	As design of drawing Main: 12 stations
		Rollers	High grade No 45# steel with hard 0.05mm chromed
		Shaft	High grade No 45# steel
		Diameter of shaft	As design of drawing Main: 50mm
		Chain	Main: 1-1.5inch
3	Control	PLC control	China/Taiwan/Japan/Germany brand
		Main motor	Main: 4kw
		Language	English or as your request
4	Cutting	Cutter	High grade Cr12 steel
		Cutting system	Hydraulic
		Hydraulic pump	Main: 3kw
		Cutter frame	Steel plate welding
5	Decoiler	Manual	800Kg
6	Product	Receiving table	Manual

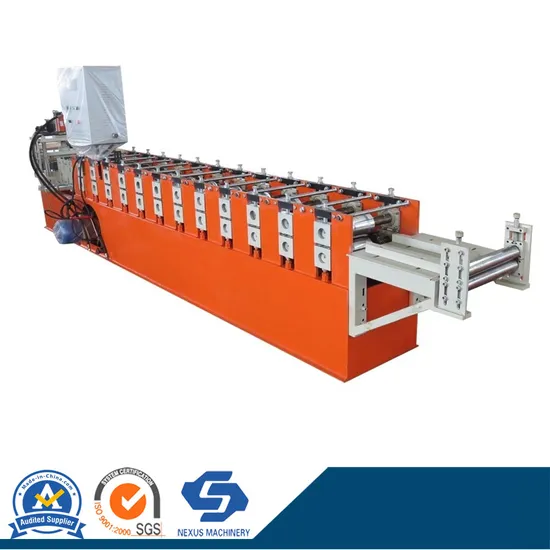

Photo for Garage Door Panel Machine Roller Shutter Door Roll Forming Machine:
FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.

---
