Forming Cutting Stacking on Plastic Food Containers Boxes Thermoforming Forming Making Machine

Product Description

Forming Cutting Stacking on Plastic Food Containers Boxes Thermoforming Forming Making Machine
Product Description

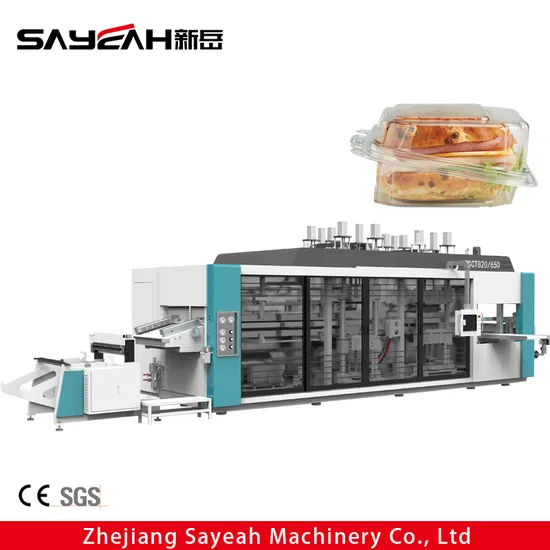

The model of FSCT-820/650 thermoforming machine is our lastest developed products, it combines forming, punching, cutting and stacking in one process.This machine is specialized for forming PP, PS, HIPS, PVC, PET,OPS, EPS, C-PET, PLA, C-PLA, ABS or other materials sheet that can be widely used to produce all kinds of food and non-food packaging products like plastic trays, containers, boxes, lids and son on.
Features
1. European design, complete functions, suitable for diversified production lines, safe, efficient, energy-saving and hygienic
2. Unwinding station electric lifting, double roll holder. allow for single operator loading rolls up to 1T
3. Operator-friendly HMI, and the system has the function of remote connection
4. Fast and accurate temperature control system (error ± 1 degree), with hot furnace detection material drop and air source low pressure protection system
5. Intelligent operation, the whole machine is equipped with formula storage and automatic adjustment without shutdown
6. It can share molds with models of most well-known brands at home and abroad, and cooperate with existing production lines
7. Fast mold change system, which can facilitate fast, accurate and safe mold change and reduce machine downtime
8. Under any forming scheme, the clamping frame and plug assist function can be used alone or at the same time, greatly simplify the mold structure
9. Materials with strong shrinkage can adopt the single station in-mold-forming-cutting function to 100% ensure the edge cutting accuracy
10. High precision forming and cutting technology to achieve the perfect forming and cutting performance of high-speed control and low wear
11. The stacking station can be customized, which simplifies the stacking of complex parts and is convenient to meet further production needs
12. Optimize the design of electric cabinet and simplify the machine assembly and wiring installation process

Model	3	4
Max Forming area	820x650mm
Max Forming Depth and Height	150/150mm
Max Sheet Width	860mm
Max Sheet Roll Diameter	1100mm 1 Ton
Power	200kw	215kw
Dimension	11200x2900x2950mm	12500x2900x2950mm
Sheet Thickness	0.15-2mm
Max No-load Speed	65 Cycles/min
Weight	20T	25T

Detailed Photos
We use the motor screw loading device, the maximum support 1 ton weight and 1.1 meters diameter sheet roll, and support double rolls of sheet, the production can quickly change the coil to shorten the coil change time.
This is the heater, the heater is marked with a number, which can help us quickly find the corresponding heater on the touch screen to adjust the temperature. Part of the heater can be turned off according to the customer's product. When the machine is shut down, the heater will automatically exit to prevent excessive heating of the sheet.
This is the stacking station, servo-driven, it can be stacked single-axis, rotary stacking, can be designed according to customer needs.

Main Electrical Components
Industrial control system	DELTA TAIWAN / Inovance Shenzheng
PLC	DELTA TAIWAN / Inovance Shenzheng
Touch screen interface	DELTA TAIWAN / Inovance Shenzheng
Feeding servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Stacking servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Forming servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Cutting servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Vacuum pump	RUFUS,Jiangsu
Infrared ceramic heater	Tianbao, CHINA (3 years Warranty)
Solid state relay	SHANGHAI, AOYI
Pneumatic components	MAC,USA/SMC, Japan/ Germany

According customers' requirements, there also Lenze system for choosing
