Xk6325 Low Noise High Quality Combo Metal Milling CNC Milling Machine Price

Product Description

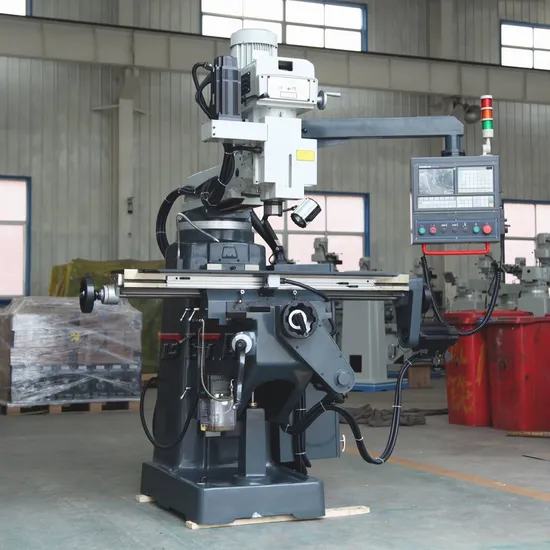

XK6325 Low noise high quality combo metal milling CNC milling machine price

Model		Unit	XK6325	XK6330
Table size		mm	254×1370	305×1370
T slots		n*mm	3×16	3×16
Table loading		kg	280	350
X axis(table longitudinal move)travel		mm	750	800
			850	900
Y axis(table cross move)travel		mm	400	360
Z axis(Quill move)travel		mm	103	103
X/Y/Z axis servo motor		kw	1	1
Knee vertical travel		mm	400	380
Ram travel		mm	470	500
Distance from spindle to table		mm	0-400	0-380
Spindle speed	Atandard:16 steps	rpm	50HZ:66-4540 60HZ:80-5440	50HZ:66-4540 60HZ:80-5440
	Optional:Variable		60-4200	60-3600
Spindle taper			Standard:R8/Optional:NT40	NT40
Motor power		HP	3	5
Head rotating	Swiveling	degree	90°	90°
	Tilting		45°	45°
CNC controller			GSK/Siemens	GSK/Siemens
Packing size		mm	1900×2000×2230	2000×2000×2250
G.W		kg	1400	1800

Standard accessories:
GSK980MD CNC controller ,
step spindle speed milling head (3HP for XK6325, 5HP for XK6330) ,
R8 spindle taper for XK6325,
ISO40 spindle taper for XK6330,
draw bar,
Tool box and tools,
Hung up control panel,
Coolant system,
Oil collecting plate,
Plastic splashing guard,
Auto lubrication system,
Working lamp,
English manual,
wooden pallet packing.
Features:
1.Cast-iron with wide, hardened, plastic-coated rectangular guide ways
2.Powerful main motor with electronic control and shifted gears ensure high torque and wide speed range
3.Cutter head swivel to both sides
4.Automatic central lubrication
5.Mini and economical style, with lower price and widely using
6.Milling head from Taiwan
7.Bearing from NACHI
8.Ball lead screw from Chinese famous brand
9.3-Axis servo motor and 3-axis rapid feed
10.Variable speed milling head for your choice as optional accessories.

---
