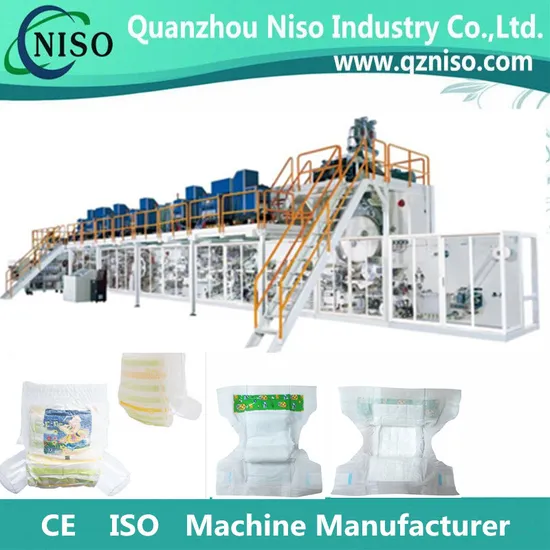

High Effiency Rate Kids Towels Manufacturing Machinery with Economical Price

Product Description

High Effiency Rate Kids Towels Manufacturing Machinery with Economical Price
Parameter of baby diaper machine

model	driven mode	speed(PCS/MIN)	weight(T)	capacity	machine size(L*W*H)
YNK500SV	full servo driving	500-600	105	330kw	31*8*5.5m
YNK450HSV	semi-servo driving	400-450	79	240kw	27*8*5.5m
YNK400FC	inverter driving	400-450	62	190kw	27*8*5.5m

Functions and features:
1)The machine can produce 4 sizes of I shape, T shape baby diapers.
2)Crusher system adopts hard alloySaw blade head, can crush all kinds of fluff pulp, crushing capacity can up to 600-1000KGS/Hour.
3) Double fluff core drum forming system ,with long fiber and better absorbent capacity.
4) SAP feeding adopts frequency converter controlling system. Parameter of grams can be set on the touchable screen.
5)The machine produce I shape or T shape type baby diapers, which include the following devices:
a) Fluff pulp wrapping and continuous pressing unit.
b) Top sheet non-woven feeding system
c) Leg cuff system
d) Bottom film feeding system
e) Frontal tape feeding and side tape feeding system
f)Side tape inner-folding system
g)Arc shape cutting system
h)Product vertical folding and product final cutting system
i) Product arranging-out.
Optional device:
1:Perfume spraying unit
2:Wetness display function
Main technical parameters
1) Model: YNK450-HSV
2) speed: 400-450m/min
3) capacity: 330KW (380V 50Hz)
5) Breaker Capacity: 400A
6) Electric wire:3x70mm2+1x25 mm2+1x16mm2
7) Machine size:(31*8*5.5)M(L×W×H)
8) Machine weight:28.5T
9) Air compressor:1.5m3/min
10) Product size: S, M, L,XL,
11)Container:2x40HQ

---
