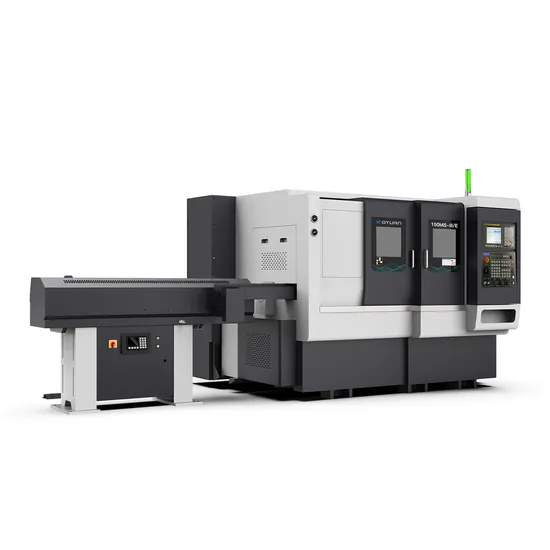

High Quality CNC Dual Spindle Turning Center Machine Ety150ms3

Product Description

Product Description
High-strength HT300 one-piece structure casting iron bed, 30-degree step type flat rail structure, application of finite element analysis, excellent overall mechanical rigidity and stability, and can maintain long-term reliable accuracy, processing stability and tool life, stress relief treatment improve accuracy and stability, high-strength roller rail design, drive system adopts screw pre-tension design, improve response rigidity.
Both ends of the workpiece can be processed at the same time in one clamping, which greatly simplifies the manual operation, increases the output and reduces the process. The second spindle is capable of full turning and can express workpieces during machining, reducing cycle times.
1.Direct drive synchronous electric spindle device: magnetic ring type incremental encoder (Sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds.
Effectively eliminate the vibration of spindle, and the deflection accuracy of the nose end is within 0.002mm. Improve the surface finish of the workpiece.
The rear-mounted rotor is used to facilitate installation and maintenance.
The spindle motor is equipped with cooling system to suppress the influence of thermal displacement and ensure a constant working temperature of the spindle. The spindle system has passed the strict dynamic balance test. It has good precision retention, high rigidity and high efficiency, so that the machine can not only complete finishing machining, but also rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high finish product.
2.High rigidity integral servo power turret. With rapid and precise tool change performance. The tool holder installation used high-rigidity BMT interface, and the power transmission shaft is driven by servo spindle motor.
3.The machine is equipped with THK linear guide rail and ball screw. The heat-treated and precision-ground ball screw can ensure the best precision and durability. Each axis adopts a direct transfer shaft structure and a double-anchor pre-relay method, which can minimize thermal displacement and greatly improve machining accuracy. High rigidity, large size, and heavy-duty linear slide rails can keep the accuracy of the machine unaffected when it is impacted, the displacement is smooth and the noise is low, which can prolong the service life.
4.Standard configuration FANUC system, and the feed drive adopts FANUC servo motor.
5.Perfect hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components, greatly reducing the failure rate. The design of the hydraulic and lubrication system is simple and reliable.
6.Using Taiwan rotary chuck, oil cylinder and automatic chip removal device, which can greatly reduce the labor intensity of the operator and realize safe and efficient production. The above functional components can be controlled by programming. Special fixture.

Product Parameters

Item	Unit	150MS-III/E
Max.swing diameter over bed	mm	Ф380
Max.processing diameter	mm	Ф100
Max.processing diameter Over tool holder	mm	Ф160
Max.processing length	mm	150
Spindle nose	type	A2-5
Max.speed of spindle	rpm	5500
Oil cylinder/Chuck	"	6
Spindle bore diameter	mm	Ф56
Bar diameter	mm	Ф45
Direct drive spindle motor power	kw	17.5
Spindle torque	N.m	62-125
Sub spindle nose	type	A2-4
Max.speed of Sub spindle	rpm	6000
Oil cylinder/collect	"	5
Sub spindle bore diameter	mm	Ф46
Bar diameter	mm	Ф32
Direct drive sub spindle motor power	kw	11
Sub spindle torque	N.m	27-66
X1/Z1 motor power	kw	1.8/1.2
X2/Z2 motor power	kw	1.2/1.2
X1/Z1 travel	mm	135/370
X2/Z2 travel	mm	215/400
X1/Z1/X2/Z2 fast moving	m/min	30/30/30
X1/Z1 slide rail type	/	Roller 35/35
X2/Z2 slide rail type	/	Roller 30/30
Positioning accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003
Upper power turret type	/	BMT45-12T
Upper power turret motor	Kw/N.m	2.2/26
Max.speed of upper power turret	rpm	6000 ER20
Specification of outer diameter tool holder	mm	20x20
Specification of inner diameter tool holder	mm	Ф32
Adjacent tool change time	sec	0.15
Lower power turret type	/	BMT40-8T
Lower power turret motor	Kw/N.m	2.2/26
Max.speed of lower power turret	rpm	6000 ER20
Max.speed of lower power turret	mm	20x20
Specification of outer diameter tool holder	mm	Ф25
Specification of inner diameter tool holder	sec	0.15
Machine dimension	m	2.2x2.1x1.7
Machine weight	kg	3500
Cutting fluid tank volume	L	180
Hydraulic unit box volume	L	40
Hydraulic pump motor power	kw	1.5
Lubricant oil tank volume	L	2
Automatic lubrication pump motor power	W	50
Cooling water pump power	W	750

Products Configurations

Company Profile

Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.

---
