Factory Direct Sale Universal Radial Drilling Machine (Z3040X10/13)

US$2,000.00-4,000.00 1 set (MOQ)

Basic Info.

Model NO.
Z3040X10/13
Controlling Mode
Mechanical
Number of Shaft
Not CNC
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE
Condition
New
Spindle Taper
Mt4
Clamp Type
Mechanical Clamp
Feed
Manural Feed
Lift
Automatic Lift
Transport Package
Plywood
Specification
dill diamter 40mm
Trademark
WODA
Origin
China
HS Code
8459290000
Production Capacity
200 PCS/Month

Product Description

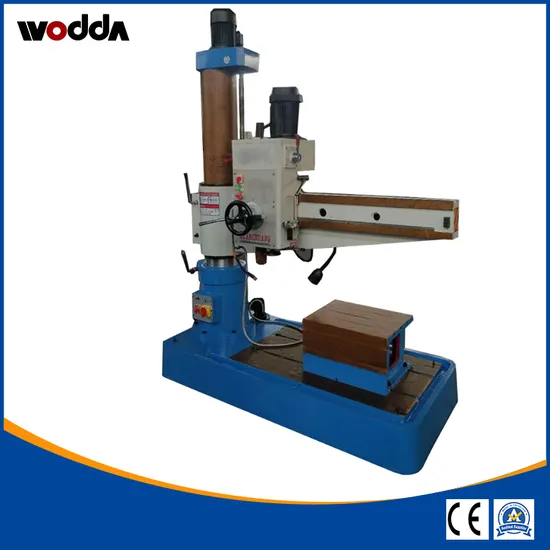

Factory Direct Sale Universal Radial Drilling Machine (Z3040X10/13)
Factory Direct Sale Universal Radial Drilling Machine (Z3040X10/13) Features:
Radial drilling press machine can be widely used in drilling, reaming, reaming, planing plane, tapping and other processing. High quality and high performance.
1. Small size, reduce the area occupied.
2. The control system is concentrated in the spindle box, variable speed flexible, convenient, feed safety insurance.
3. The basic large-scale use of high-quality materials molding casting, after aging treatment, with high-precision machine tool processing, with high accuracy.
4. The guide surface are hardened, the spindle using nitriding treatment, to extend the service life.
5. Gear with BH carburizing technology to extend the service life.
Model Z3040X10/13
Max. Drilling capacity(mm) Cast iron 40/steel 32
Distance from spindle nose to table surface (mm) 260-1150
Distance between spindle axis and column surface (mm) 360-1300
Spindle travel (mm) 200
Spindle taper MT4
Spindle speeds range(rpm) 75,130,240,380,660,1200
Spindle feed range (rpm) 0.10,0.16,0.25
Rocker rotary angle 360
Motor power (kw) 2.2
Movements motor power (kw) 1.1
G.W (Kg) 1400
Overall dimension(mm) 1800x810x2300

Factory Direct Sale Universal Radial Drilling Machine (Z3040X10/13) Details:
Factory Direct Sale Universal Radial Drilling Machine (Z3040X10/13) In Workshop:
Factory Direct Sale Universal Radial Drilling Machine (Z3040X10/13) In Mass Production:
If any questions about
Factory Direct Sale Universal Radial Drilling Machine (Z3040X10/13)
Pls Feel Free To Contact Me Via Mobile+8613346326288 In Convenient
