Yw-102f Automatic Reflection Deep Embossing Machine

Product Description

YW-102F AUTOMATIC PAPER EMBOSSING MACHINE 1. Description:
Product use:
Packing box for: cosmetics, gift, medicines, cigarette, wine, teas, handbags, etc.
Cards: greeting cards, invitation, cards, special occasion cards, playing cards, etc.
Picture: religious figures and themes, work of art, etc.
Cardboard:width useful on the papercard embossing,spot embossing.
Product feature:
This machine is full-automatic equipment for concave and convex embossing.It can finish dull polish,UV,dioptric at on time without ink.
The embossing press adopts cylinder-to-cylinder structure with steady pressure. The pressure can easily adjust with different thickness of paper.
The wheel is designed with quick warm-up time and with temperature control ranges 80-150.You can easily adjust pressure with high precision.
The machine is applied to embossing and ink-free printing, pollution-free, low power and odorless; making different graphic images which can be special designed for customer. Such as: reflection, ice, laser, 3D, etc.
2. Main Technician Specification:

Model	YW-102F
Max. Paper size	1020x720mm
Min.Paper size	450x290mm
Max.Emboss size	1020x710mm
Material Thickness	128-900gsm
Embossing plate size	1020x860x0.6~1.2mm
Blanket size	1020x950x1.8mm
Max.speed	5000R.P.H
Total Power	18.0kw
Total Weight	7000kg
Overall Dimension	5800x2000x1800mm

3. Standard Equipment: Automatic paper feeder Embossing and Delivery unit 4. Main parts origin list

No.	Name	Brand	Origin
1	Main Motor	DEDNONG	Shanghai, China
2	Oil pump	LiShao	Shanghai, China
3	Feeder	FeiYa	WenZhou, China
4	Air Pump	BECKER	Germany
5	Conveyor belt	Mei Ao	JiangSu, China
6	Frequency Inverter	HPMONT	Shenzhen, China
7	Button	Schneide	France
8	Sensor	OMRON	Japan
9	PLC		Shenzhen, China
10	Relay	OMRON	Japan
11	Photocell	OMRON	Japan

Sample photoes:

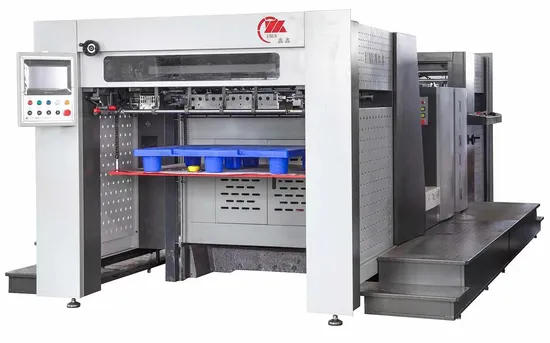

Machine photoes:

---
