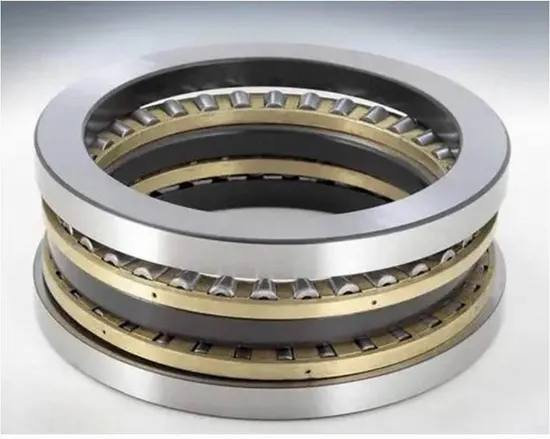

Thrust Roller Bearing Separable Inner Diameter 320mm, Spherical Roller Thrust Bearing

Product Description

Product Description
The roller of 29000 type bearing is asymmetrical spherical roller,Can reduce relative sliding in the work of the roller and raceway ,and the roller is long,diamenter is big,there are many rollers,high load capacity,oil lubrication is usually used,grease lubrication is available for individual low speed conditions.8000 type thrust cylindrical roller, 9000 type thrust tapered roller bearings and AXK thrust needle bearings can bear One-way axial load,it is much larger than the thrust ball bearing's axial load capacity .and the rigidity is big, the occupied axial space is small.Thrust cylindrical roller bearings and thrust tapered roller bearings are suitable for low speed applications.Thrust cylindrical roller bearings mainly use in heavy-duty machine tools, high-power marine gearbox, oil drilling machines, vertical motor and other machinery.Character : It can bear both axial load and radial load, suitable for high speed applications .Two-way thrust angular contact ball bearing that we developped recently mainly use for work roll thrust position of high speed aluminum foil mill,has the advantages of stable rotation, long service life, etc.
Product Parameters

Dimension								Rated load	Model		Weight
mm								kN	New	Original	kg
D	D1	d1	T	R	M 1	M 2	rmin	Coa
150	148	127	48	228.6	M12	-	1.5	1630	TTSV150	4297/150	5
175	173	152	53	228.6	M12	-	1.5	2180	TTSV175	4297/175	8
203	201	178	65	254	M12	-	1.5	2540	TTSV203	4297/203	11
205	203	178	65	254	M20	-	1.5	3370	TTSV205	4297/205	15
235	233	208	73	280	M20	-	1.5	3370	TTSV235	4297/235	18
265	263	229	81	304.8	M20	-	1.5	4130	TTSV265	4297/265	24
320	318	280	95	380	M24	-	1.5	7370	TTSV320	4297/320	42
377	375	330	112	457.2	M24	-	2.5	8230	TTSV377	4297/377	86
380	378	330	112	457.2	M24	M30	1.5	8220	TTSV380	4297/380	67
410	408	355	122	508	M24	M30	3	11300	TTSV410	4297/410	115
440	438	380	130	508	M24	M36	3	18500	TTSV440	4297/440	140
495	492	432	146	558.8	M24	M36	3	19100	TTSV495	4297/495	198
525	522	460	155	635	M24	M36	3	20380	TTSV525	4297/525	210
555	552	482	165	635	M24	M36	3	21380	TTSV555	4297/555	275
580	577	510	165	710	M24	M42	3	23540	TTSV580	4297/580	250
