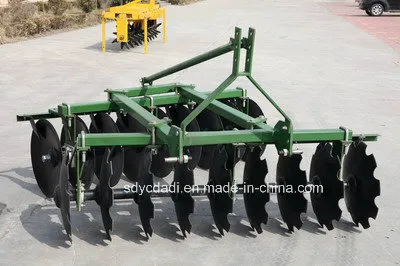

Agricultural Middle-Duty Disc Harrow (Medium Mounted Disc Harrow)

Product Description

Middle-duty Off-set Disc Harrow
The 1BJX series Disc Harrow are suitable for pulverized and loosening clods on sticky heavy clay soil after ploughing and for planning the land before sowing. On cultivated land, the machines can make soil and fertilizer mix up, and clear away the stump of plants and be used instead of plough on light or medium soil and preparing seed bed for planting.
Details of the 1BJX series Middle-duty Disc Harrow: The disc blades of front disc gang are the notched disc and the disc blades of rear disc gang are the smooth discs. They are made of 65Mn steel plate and having been heat treated, they are sturdy and durable. The bearings of the medium harrow are sealed spherical rolling within bearing house.It has small resistance and short maintenance time. The scrapers of the harrow are used to clean up clods sticking to the disc and prevent blocking up.

Model		1BJ-4.0	1BJ-4.4	1BJ-4.8	1BJ-5.3	1BJ-6.2
Working width(M)	4.0		4.4	4.8	5.3	6.2
Working depth(Cm)	14-18
Dia. Of Disc(Mm)	560*4
Disc space(Mm)	230
Qty. of Disc	36		40	44	48	56
Productivity(Ha/h)	2.5		2.7	2.9	3.25	3.8
Overall size(Mm)	522*420*113		540*460*113	540*460*113	552*552*113	565*640*113
Weight(Kg)	1560		1750	1950	2150	2600
Linkage	Trailed
Matched power(Hp)	75-100		80-120	90-150	100-150	150-180

---
