36mm 32mm Hot Melt Ink Roller

Product Description

Product Description:

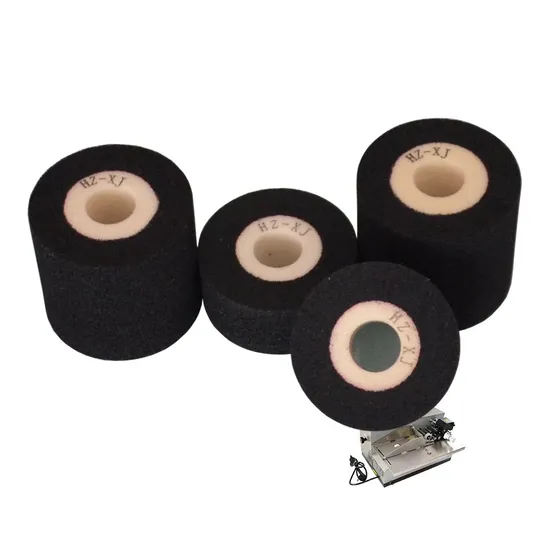

Our Hot Ink roller, manufactured by Henan Union Coding Tech Co., Ltd., is designed for use with MY-380F, Friction/Electric Ink roll coding machines, and Sealing machines to print date and batch numbers. The roller comes in two types: M (Medium temperature: 90-130°C) and H (High temperature: 120-160°C).
Product Description:
Henan Union Coding Tech Co., Ltd. offers a cutting-edge printing solution for food and medical packaging. Our product is designed to print date and batch numbers with precision and efficiency. It is ideal for delivering high-quality printing on flexible packaging films, foils, and labels, making it perfect for continuous operations.
Experience clear, adhesive, and quick-drying printing with our 36mm and 32mm Hot Melt Ink Rollers. Ideal for marking machines, these rollers deliver efficient results.
Product Description
Welcome to Henan Union Coding Tech Co., Ltd.
Introducing our versatile printing solution that can be used with the MY-380F coder, Friction Ink roll coder, and Sealing machine.
The working principle of our product is to melt the solid ink roller and effortlessly print on any object that requires labeling.
Packaging

Usual sizes : 36*16mm , 36*32mm, 36*36mm, 36*40mm, 40*40mm, 30*25mm, 38*32mmUsual colors:black , white, red , blueAny sizes and colors can be customized according to your need.

Usual size	Quantity per box (pcs)	Quantity of boxes per carton (pcs)	Quantity percarton (pcs)	Packaging size (cm)	Weight(KGS)
36mm*16mm	24	20	480	28*29*31cm	7KG
36mm*32mm	12	20	240	28*29*31cm	8KG
36mm*36mm	12	18	216	28*29*31cm	8KG
36mm*40mm	12	18	216	28*29*31cm	8KG
40mm*40mm	12	15	180	28*29*31cm	8KG

Ink Roller Printer Usage Instructions
Product Description:
Company Name: Henan Union Coding Tech Co., Ltd.
Usage Method:
Insert the ink roller into the preheater for 10-15 minutes. If a preheater is not available, it is acceptable to place the ink roller directly into the printer for preheating. Adjust the space between the code printer word wheel and the hot iron roller to achieve the optimum condition for printing.

fault	reason	solution
Printing times lack	1. low temperature 2. preheat for roller and character wheel is not enough 3. Pressure between roller and wheel is small	1. raise the temperature in a approved scope 2. Preheat for 15 min before start 3. modulate the gap
Ink pollution	1. word wheel dirty 2. roller temperature too high	1. change the character wheel 2. decrease the temperature to appropriate one.
Grooves on ink roller	3. Preheat is not enough	1. preheat above 15 min

---
