High Sensitivity Fiber Laser Cutter Machine Head Parts Nozzle Holder Base Ospri Laser Ceramic Ring

Product Description

Product Description:

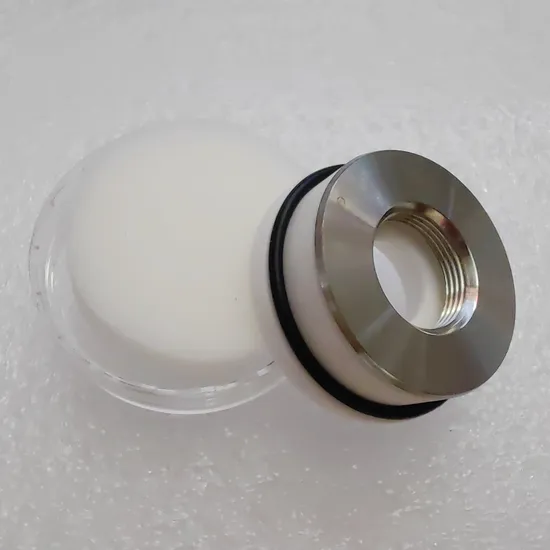

Model: Standard Ceramic Rings
Size: Diameter 28mm, Height 12mm, Screw Thread M11
Applicatioin: Suitable for laser head for fiber laser cutting machine

Advantages: 1. High-Quality Alloy Prevents Bursting: Made with imported ceramics and high-quality special alloys, ensuring consistent thermal expansion across ceramic ring materials to prevent any risk of bursting.
2. Stable Signal and High Sensitivity: Constructed with imported conductive silver glue and gold-plated copper needles, providing excellent electrical conductivity, high sensitivity, and effective insulation, minimizing sensor damage from impacts.
3. Heat-Resistant, No Deformation: The ceramic body is securely bonded to the alloy, maintaining shape under heat. Its high surface finish enables smoother airflow for optimal performance.
Other Models:

Laser Head Brand	Model	Note
Raytools	D19.5	BT240S(3D), BM111(3D) BM110 (3D)
	D21.4	BT220-3D, BD04K-3D, BM06K-3D
	D28	BT220(flat),BD04K, BM06K, BS06K
	D32	BT240S(flat), FM220, BM111(flat), BM110 (flat), BS06K

Sepcification:

Model	Diameter (Max)	Diameter (down)	Height	Screw Thread
D19.5	19.5	16	12.5	M8
D21.4	21.4	18	13	M8
D21.4	21.4	15.5	16.9	M11
D28	28	24.5	12	M11
D32	32	28.5	12	M14

Customer Feedback:
Certifications:
FAQ
FAQ:
1. Lead Time
Usually it will take 3-5days if we have them in stock. Customized order will take 7-30 days.
2. MOQ
Our MOQ is 1 piece except customized order.
3. About Samples
Free samples are available. But you need arrange the express chage, for more details, please contact the us directly
4. About Tax If you want to less or no tax, we can show less value on shipping documents.
Our company:

Jinan Omai CNC Machinery Co., Ltd. stands as a leading manufacturer, specializing in a diverse range of laser technologies, including laser cleaning machines, welding machines, fiber laser cutting, and marking machines. With a decade of industry expertise, our proficient engineers, skilled assembly and testing teams, and dedicated after-sales support ensure superior quality products and services. We accommodate small batch orders, offer OEM and ODM services, and provide bespoke solutions crafted to your unique specifications. Our esteemed global clientele spans across the USA, UK, Taiwan, South Korea, Malaysia, Thailand, Australia, Brazil, Russia, South Africa, and beyond.

---
