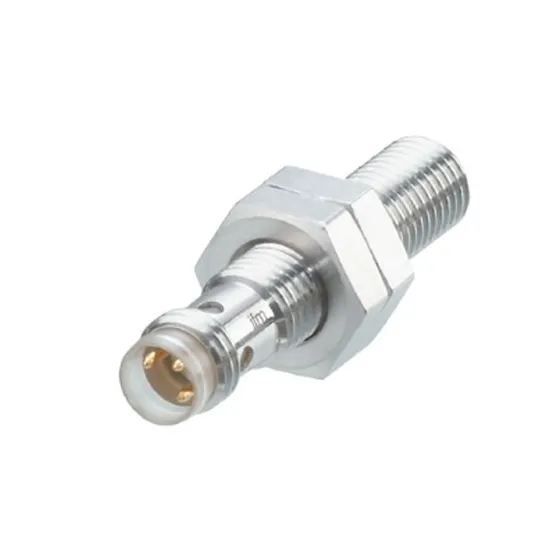

Ifm Inductive Sensor Ie5338, with NPN and PNP Designs, Product ID Iebc003baskg/as

Product Description

Product Description IFM inductive sensors have many excellent advantages in use, such as Particularly short housing,For use where space is restricted,Clearly visible indication of the switching status,Long sensing range for high uptime,Reduced stock-keeping due to operation as three-wire or two-wire unitDuring use, the product may be affected, which in turn affects its functionality, lifespan, quality, and reliability. The customer is responsible for determining whether the product is suitable for the specified application. Especially for applications in hazardous areas, as well as applications with adverse environmental effects such as pressure, chemicals, temperature, fluctuations, humidity and radiation, and mechanical stress, especially when the product is not installed correctly. Do not use the product in applications where personnel safety depends on its functionality.1. Connection
2. Shell
3. Downstream electronic equipment
4. Capacitors
5. Coils
6. AC electromagnetic field=effective zone
7. Target=Conductive material
Detailed Photos The IFM inductive switch IE5338 has Particularly short housing,For use where space is restricted,Clearly visible indication of the switching status,Long sensing range for high uptime,Reduced stock-keeping due to operation as three-wire or two-wire unit. Due to the large number of models, we only display some products If there is a need, please contact the salesperson Looking forward to your visit Product Parameters

Electrical data
Operating voltage [V]	10...30 DC
Protection class	III
Reverse polarity protection	yes
Outputs
Electrical design	PNP/NPN
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	800
Short-circuit protection	yes
Overload protection	yes
Detection zone
Sensing range [mm]	3
Real sensing range Sr [mm]	3 ± 10 %
Operating distance [mm]	0...2.4
Accuracy / deviations
Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...20
Switch point drift [% of Sr]	-10...10
Operating conditions
Ambient temperature [°C]	0...60
Protection	IP 65; IP 67; (with ifm socket duly screwed on)
Mechanical data
Weight [g]	16.5
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M8 x 1 / L = 40
Thread designation	M8 x 1
Materials	brass white bronze coated; sensing face: LCP orange; LED window: PPSU; lock nuts: brass white bronze coated
Tightening torque [Nm]	A = 5 mm: 1.5 Nm; B = 2 Nm
Electrical connection - plug
Connection	Connector: 1 x M8; coding: A
