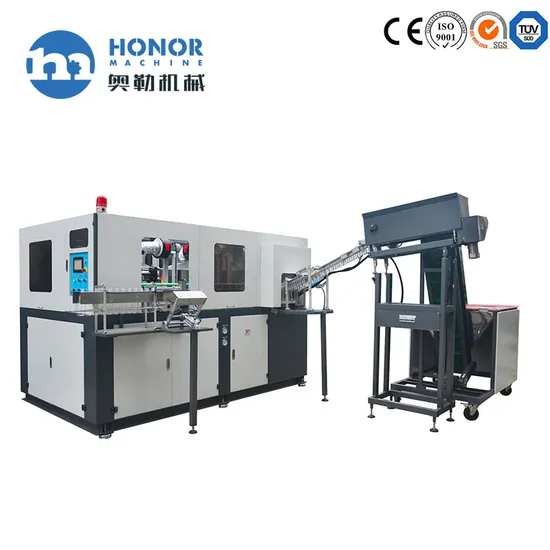

Honor Machine Plastic Pet Bottled Blow Molding Machine Blower Equipment with Heating Oven Air Compressor Chiller

US$16,200.00-46,000.00 1 Set (MOQ)

Basic Info.

Model NO.

Making Method of Parison

Stretch Blow

Automation

Automatic

Computerized

Certification

CE, ISO9001:2008, QS

Product Name

Bottle Blowing Machine

Capacity

60-10000bph

Bottle Material

Pet

Bottle Size

0.2-2L

Bottle Shape

Round/Square

Working Type

Stretch Blow

Controlled by

Siemens PLC

Cavities

by Order

Automatic

Semi/Fully/Automatic

Transport Package

Wooden Package

Specification

50-500m2

Trademark

Honor Machine

Origin

China

HS Code

84774010

Production Capacity

30sets/Month

Product Description

Honor Machine Plastic PET Bottled Blow Molding Machine Blower Equipment With Heating Oven Air Compressor Chiller1. Excellent Mechanical Strength, impact-resisting, and non-craking.
2. Bottle mouth and thread are of precise measurement.
3. Plastic Medicine Bottle's safe thread can be molding directly.
4. The size and weight of the product can calculate and design clearly and meet the requirement of the design without any deviation.
5. The surface of the bottle mouth, neck and the body is good luster and smoothness, the standard of bottle body is unity.
6. The joint seam on the bottle body is smooth, no scrap rubber.

Model	HM-A2	HM-A4	HM-A6	HM-A8
Capacity(500ml/bottle/h)	1800-2500	3200-4000	5500-6000	7600-8000
Max volume(L)	2L	2L	2L	1.5L
Max neck diameter(mm)	45mm	45mm	45mm	45mm
Max bottle diameter(mm)	100	100	90	76
Cavity	2	4	6	8
Total power(kw)	25	45	60	86
Operation power(kw)	12	25	45	65
Working pressure(Mpa)	1.0Mpa	1.0Mpa	1.0Mpa	1.0Mpa
Low pressure consuming(L/min)	1000	1600	1600	1800
Blowing pressure(Mpa)	≤3.0Mpa	≤3.0Mpa	≤3.5Mpa	≤3.5Mpa
High pressure consuming(L/min)	1200	2400	3600	4200
Machine size(mm)	190013502000	220018002000	410020002000	690021002000
Machine weight(kg)	220	250	320	390

Honor Machine provides the wide range of liquid filling capabilities and industry experience while delivering the lower cost of ownership for our customers.
We are not only a filling equipment manufacturer, but also design and build factories, equipment layout, circuit layout and equipment operation schemes. Our equipment is designed carefully, easy to use and easy to manage. Whether you need a machine or a complete filling and packaging system, we have rich experience to ensure the successful completion of your project.
Since 2008, Honor Machine has been one of the leading suppliers of packaging technology. Located in the beautiful city of Zhangjiagang, Jiangsu Province, a new port city famous for professional industrial city. We are committed to:
