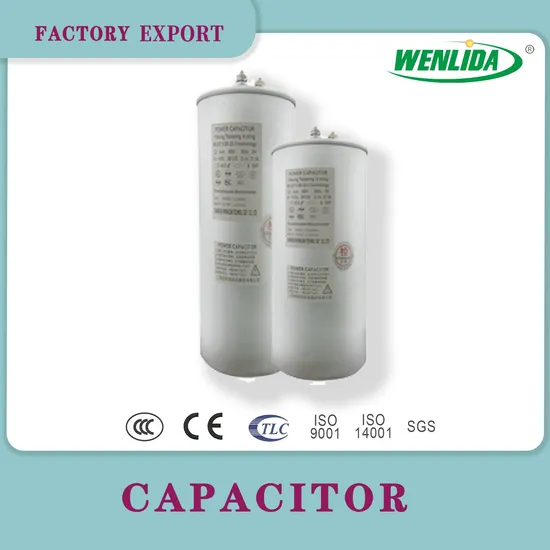

Filter Type Low Voltage Capacitor High Quality Power Frequency Cylindrical Capacitor Wt-Lcy-0.48-30-3

US$10.00-6,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
WT-LCY-0.48-30-3
Packaging Type
Surface Mount
Capacitance
1-400UF
Structure
Fixed Capacitor
Manufacturing Material
Polypropylene
Usage
Low Frequency Coupling, High Frequency Coupling, Filter, Low Frequency Bypass, High Frequency Bypass
Tuning
Polystyrene Capacitor
Volume Deviation
(UF%) - 5 ~ 10%
Frequency
50 Hz / 60 Hz
Surge Current Withstand Capacity
≥ 200 * in
Insulation Withstand Voltage
3kv / 10s
Transport Package
Wooden
Trademark
WENLIDA
Origin
China
HS Code
85044019
Production Capacity
20000PCS/M

Product Description

PRODUCT INTRODUCTION:
The filter capacitor is suitable for reactive power compensation and harmonic control in the strong harmonic power supply system. The filter capacitor is connected with the reactor to improve the power factor of the power supply system while filtering, so that the power quality of the power grid can be effectively improved. It can be used in various working conditions of capacitive reactive power compensation and strong current harmonic filtering.
Compensation capacitor can be used in series with common series reactor to reduce reactive power loss, suppress harmonic amplification and improve power grid qualityCompensation capacitor can be used in series with common series reactor to reduce reactive power loss, suppress harmonic amplification and improve power grid quality.
MODEL DESCRIPTION:
SPECIFICATION SHEET:
COMPENSATING TYPE
Product name Specification and model Dimension(mm)
diameter * height
Width * depth * height		 Terminal block Rated capacity
(uF)		 Rated current
(A)
Cylindrical capacitor WT-BCY-0.48-15-3 D86*H245 M6 207 17
WT-BCY-0.48-20-3 D86*H290 M6 276 24
WT-BCY-0.48-25-3 D86*H290 M8 345 30
WT-BCY-0.48-30-3 D106*H290 M8 414 36
WT-BCY-0.48-40-3 D116*H290 M8 553 48
WT-BCY-0.48-50-3 D136*H290 M8 691 60
Aluminum stretch capacitor WT-BCT-0.45-15-3 175*62*160 M6 236 19
WT-BCT-0.45-20-3 175*62*160 M6 314 26
WT-BCT-0.45-25-3 175*62*223 M6 393 33
WT-BCT-0.45-30-3 202*102*165 M8 472 38
WT-BCT-0.45-40-3 202*102*230 M8 629 51
WT-BCT-0.45-50-3 202*102*230 M8 786 72
WT-BCT-0.48-15-3 175*62*160 M6 207 17
WT-BCT-0.48-20-3 175*62*223 M6 276 24
WT-BCT-0.48-25-3 175*62*223 M6 345 30
WT-BCT-0.48-30-3 202*102*165 M8 414 36
WT-BCT-0.48-40-3 202*102*230 M8 553 48
WT-BCT-0.48-50-3 202*102*230 M8 691 60
WT-BCT-0.525-15-3 175*62*160 M6 173 16
WT-BCT-0.525-20-3 175*62*223 M6 231 22
WT-BCT-0.525-25-3 202*102*165 M8 289 27
WT-BCT-0.525-30-3 202*102*165 M8 346 33
WT-BCT-0.525-40-3 202*102*230 M8 462 44
WT-BCT-0.6-30-3 202*102*165 M8 265 29
WT-BCT-0.6-40-3 202*102*230 M8 354 38
WT-BCT-0.69-30-3 202*102*165 M8 201 25
WT-BCT-0.69-40-3 202*102*230 M8 267 33
WT-BCT-0.85-30-3 202*102*165 M8 132 20
WT-BCT-0.85-40-3 202*102*230 M8 176 27
WT-BCT-0.95-30-3 202*102*165 M8 106 18
WT-BCT-0.95-40-3 202*102*230 M8 141 24
FILTER TYPE
Product name Specification and model Dimension(mm)
diameter * height
Width * depth * height		 Terminal block Rated capacity
(uF)		 Rated current
(A)
Cylindrical capacitor WT-LCY-0.48-15-3 D86*H245 M6 207 17
WT-LCY-0.48-20-3 D96*H290 M6 276 24
WT-LCY-0.48-25-3 D106*H290 M8 345 30
WT-LCY-0.48-30-3 D116*H290 M8 414 36
WT-LCY-0.48-40-3 D136*H290 M8 553 48
Aluminum stretch capacitor WT-LCT-0.45-15-3 175*62*160 M6 236 19
WT-LCT-0.45-20-3 175*62*223 M6 314 26
WT-LCT-0.45-25-3 202*102*165 M6 393 33
WT-LCT-0.45-30-3 202*102*165 M8 472 38
WT-LCT-0.45-40-3 202*102*230 M8 629 51
WT-LCT-0.48-15-3 175*62*223 M6 207 17
WT-LCT-0.48-20-3 202*102*165 M6 276 24
WT-LCT-0.48-25-3 202*102*165 M6 345 30
WT-LCT-0.48-30-3 202*102*230 M8 414 36
WT-LCT-0.525-15-3 175*62*223 M6 173 16
WT-LCT-0.525-20-3 202*102*165 M6 231 22
WT-LCT-0.525-25-3 202*102*230 M8 289 27
WT-LCT-0.525-30-3 202*102*230 M8 346 33
WT-LCT-0.6-30-3 202*102*230 M8 265 29
WT-LCT-0.6-40-3 202*102*230 M8 354 38
WT-LCT-0.69-30-3 202*102*230 M8 201 25
WT-LCT-0.69-40-3 202*102*230 M8 267 33
WT-LCT-0.85-30-3 202*102*230 M8 132 20
WT-LCT-0.85-40-3 202*102*230 M8 176 27
WT-LCT-0.95-30-3 202*102*230 M8 106 18
WT-LCT-0.95-40-3 202*102*230 M8 141 24
Iron shell capacitor WT-LCT-0.69-50-3 255*145*250 M12 334 42
WT-LCT-0.69-60-3 255*145*300 M12 401 50
WT-LCT-0.69-80-3 255*145*400 M12 535 67
WT-LCT-0.69-100-3 255*145*450 M12 669 84
WT-LCT-0.69-120-3 255*145*500 M12 802 100
WT-LCT-0.95-50-3 255*145*250 M12 176 30
WT-LCT-0.95-60-3 255*145*300 M12 212 36
WT-LCT-0.95-80-3 255*145*400 M12 282 49
WT-LCT-0.95-100-3 255*145*450 M12 353 61
WT-LCT-0.95-120-3 255*145*500 M12 423 73
Note: if the user needs the specifications not listed in the table can be designed separately
TECHNICAL PARAMETER:
a) Volume deviation: (UF%) - 5 ~ 10%
b) Loss tangent (Tan δ): 0.01% (UN 50 Hz, 20 ºC)
c) Frequency: 50 Hz / 60 Hz
d) Ambient temperature: upper limit + 55 ºC, lower limit - 30 ºC
e) Maximum allowable voltage: 1.1un (for gap use, no more than 8 hours per day)
f) Maximum over current: 1.8in, long-term operation, transition current no more than 2.5in
g) Surge current withstand capacity: ≥ 200 * in
h) Insulation withstand voltage: 3KV / 10s
i) Loss: less than 0.25w/kvar (including the loss of external discharge device)
j) The capacitor is of oil immersed type (or nitrogen filled dry type), with over-current, over-voltage, over temperature and pressure fusing and explosion-proof function. Polypropylene film is used as dielectric inside, with self-healing function.
k) The capacitor has built-in discharge resistance, and the residual voltage between terminals drops below 50V within 1 minute after the power supply is cut off.
CONDITIONS OF USE:
1.The altitude shall not exceed 2500 m;
2.The ambient temperature is - 20 ºC - + 55 ºC, the average temperature is not higher than + 35 ºC within 24 hours;
3.relative humidity: no more than 90%;
4.There is no corrosive gas, conductive dust and flammable and explosive media in the surrounding environment;
5.The seismic intensity shall not exceed grade 8;
6.For indoor installation, there should be good ventilation conditions around. If it is installed in the cabinet, there should be exhaust facilities.
