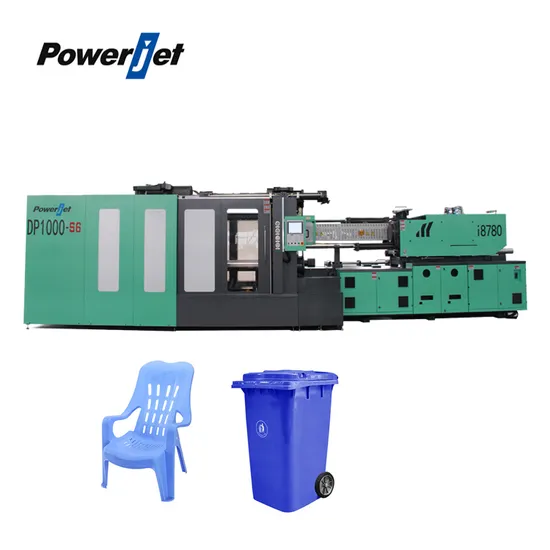

Factory Direct Plastic 1000 Ton Injection Molding Machine for Sale

Product Description

Product Parameters
Machine Details

High Efficiency
Low Energy Consumption

The high-pressure clamping adopts movable platen clamping structure, which is fixed by a high-pressure tie bar, which is reliable in sealing, does not leak oil, and the tie bar is durable.


The ejector cylinder contains a converted structure, which ensures the whole machine more short and occupy less space.
Large mold opening stroke, high-speed and stable mold opening and closing, high efficiency.

Ultra-wide space of the mold clamping area, large core pulling space and easy operation.

The mold clamping unit is automatically lubricated with grease, clean, low maintenance cost, simple and convenient.
Application

DESCRIPTION	UNIT	DP1000-S6
CLAMPING UNIT	Clamping force	KN	10000
	Opening stroke	mm	2100/1300
	Max.daylight	mm	2600
	Space between bars	mm	1300*1100
	Max.mold height	mm	1300
	Min.mold height	mm	500
	Ejector stroke	mm	350
	Ejector force	KN	210
INJECTION UNIT	Screw diameter	mm	100
	Screw L/D Ratio	L/D	24.2
	Injection Pressure	MPa	194
	Shot volume	cm3	4516
	Shot weight (ps)	g	4109
		oz	145
	Injection rate	g/s	1311
	Plasticizing capacity	g/s	108
	Screw stroke	mm	620
	Screw speed	rpm	115
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	52+60
	Heater power	KW	61
GENERAL	Oil tank capacity	L	1250
	Machine weight	T	44
	Machine dimensions (L*W*H)	m	9.5*3.4*2.9

Sales & Service Network
We have established the global marketing network. To deliver the value of Powerjet injection molding machine and extrusion blow molding machine to over 100 countries area. Multiple senior managers and business elites worldwide. Become the trustworthy partners. Provide the most thoughtful service and fastest user support for you constantly. sincerity for you.
Satisfied Customers

FAQ

Q1: Are you a manufacturer or trading company? A1: We are a factory for plastic machines. Over 23 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine. Q2: Delivery time A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly). Q3: Where is your factory located? A3: Our factory is located at No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.

---
