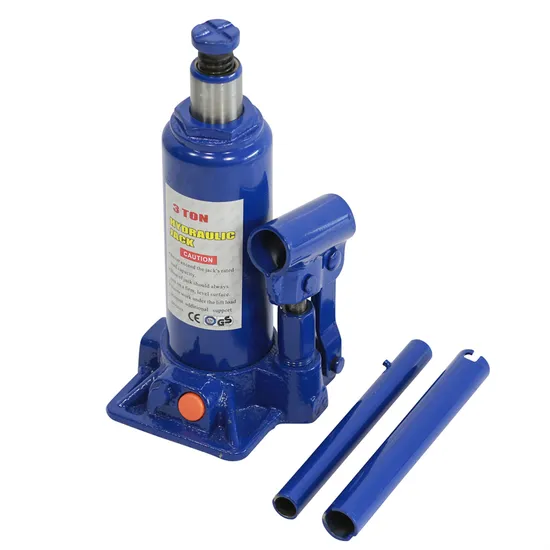

Hydraulic Bottle Jack High Lift with Safety Valve Tool GS Certificated

Product Description

Model	Capacity	Min.H	Lifting.H	Adjust.H	Max.H	N.W	Package	Measurement	Qty/Ctn	G.W	20' Container
	(ton)	(mm)	(mm)	(mm)	(mm)	(kg)		(cm)	(pcs)	(kg)	(pcs)
QYL-2L	2	148	82	50	280	2.2	Color Box	52x25.5x19	10	22.5	8900
QYL2	2	158	90	60	308	2.4	Color Box	52x25.5x19	10	24.5	8200
QYL-3A	3	180	12	50	380	2.6	Color Box	52x25.5x21	10	26.5	7500
QYL-3	3	195	125	60	380	3.4	Color Box	46x26.5x22.5	8	28	5700
QYL-4	4	195	125	60	380	3.4	Color Box	46x26.5x22.5	8	28	5700
QYL-5A	5	180	110	60	350	3.2	Color Box	46x26.5x22.5	8	26	6100
QYL-5	5	197	125	60	382	4.4	Color Box	37x27.5x22.5	6	27	4400
QYL-6	6	197	125	60	382	4.4	Color Box	37x27.5x22.5	6	27	4400
QYL-8	8	185	115	60	360	4.7	Color Box	29.5x27.5x20	4	19.5	4100
QYL-10	10	205	125	60	390	5.6	Color Box	30.5x29.5x24	4	23	3500
QYL-12	12	215	125	60	400	6.9	Color Box	30.5x16.5x24	2	14.5	2800
QYL-15	15	225	140	/	425	7.5	Color Box	31.5x17x24.5	2	15.5	2600
QYL-16	16	225	140	/	425	7.5	Color Box	31.5x17x24.5	2	15.5	2600
QYL-20	20	244	145	/	449	10.5	Color Box	34.5x19.5x27	2	21.5	1900

Notes:
1.When the vehicle is jacked up,do not open the engine,because the engine vibrates and the weels of cars turned easy to cause the jack slide down.
2.Before operating the jack, find a fixed position.
Operating Instruction
1.Before operating,estimate the weight of the load,Do not overload the jack beyond its rated load.
2.Select point of action according to the gravitational center place the jack on the hard ground if necessary,place a hard plank under the jack so as to avoid tottering or falling during operation.
3.Before operating the jacks,first,insert the notched end of the handle.into the release valve.Turn the operating handle clock wise until release value is closed.Do not over tighten the value.
4.Insert operating handle into the socket and the ram is steadily raised by the up and down movement of the handle and the load is raised.the ram will stop rising when the required height is reached.
5.Lower the ram by turning the release valve.Counterclockwise with the notched end slacken it slowly when a load is applied,or accidents can occur.
6.When more than one jack is used at the same time it is important to operate the different jacks at an equal speed with equal load.Otherwise,there is danger of falling the entire fixture.
7.Violent shocks must be avoided during the operation.
8.User must operate the jack correctly according to operating instruction:If the jacks has some quality problems,it can not be operated.
Our factory is founded in Jiaxing city in 2004, our company is a special enterprise integrating research, design, developement and specialize in and manufacturing Hydraulic bottle jack, floor jack, long floor jack, air bottle jack, portable hydraulic equipment, jack stand, vehicle positioning jack, shop crane, load leveler, motorcycle lift, shop press, hydraulic shop press, etc.

---
