Plastic PE/PP/LDPE Film Recycling Agglomerator/Film Recycling Agglomerator

Product Description

Plastic Agglomerator Machine Function and features:
Plastic agglomerator machine can directly recycle the waste plastic films and other products less than 2mm thickness into granules. It is suitable to agglomerate the waste products or films made of soft PVC, HDPE, LDPE, PP and other thermo plastics. When the waste plastic is supplied into the chamber of agglomeraotr machine, it will be cut into smaller chips due to the crushing function of the rotating knife and fixed knife. During the crushing process, the material that soaked up lots heat from the frictional movement of material being crushing and the material will be going to become semi-plasticizing state. The particles will stick with each other due to the function of plasticization. Before it sticks each other completely, the cold water pre-prepared is sprayed into the material. The water will be evaporated off quickly and the surface temperature of material being crushed drop down quickly also. So the material being crushed will become small particles or granules. It is easy to recognize the particles by different size and can be colored by using of color agent being putted into the container during the crushing processing.
The particles can be used for extrusion or injection mould machine directly. also can be further pelletized for some advanced requirements.
Features of agglomerator
1.It is easy to clean and maintenance.
2.Low noise and high capacity.
3.The belt coveryor is optional and commonly the belt converyor is suggested for big capacity.

GHC Agglomerator can directly make waste plastic films and PET chips and PET/PP fiber and some other textile products into granules. It is suitable to agglomerate the waste products or films made of soft PVC, PET, HDPE, LDPE, PP and other thermo plastics.

The particles can be used for extrusion or injection mould machine directly. Also it can be further pelletized for some advanced requirements.

Technical data

Model	GHC1000	GHC800	GHC500	GHC300	GHC200	GHC100
Tank volume (Liter)	1000	800	500	300	200	100
Working volume (Liter)	750	600	375	200	150	75
Capacity( Kg/h)	600~800	400~650	350~500	200~350	150-250	100-150
Motor power (Kw)	132	110	90	75	55	37
Rotating blades speed (r/min)	700	750	750	900	800	800
Rotating blades quantity (pcs)	4	4	4	2	2	2
Stationary blades quantity(pcs)	8	8	8	8	6	6
Discharging model	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic
Water inlet	1"	1"	1"	1"	1"	1"
Machine dimension L×W×H (mm)	2680×1815 ×2400	2170×1510 ×2140	2100×1510 ×2145	2100×1495 ×1945	1900×1160 ×1800	1900×850 ×1310
Machine weight(Kg)	3500	2800	2500	2000	1800	1200

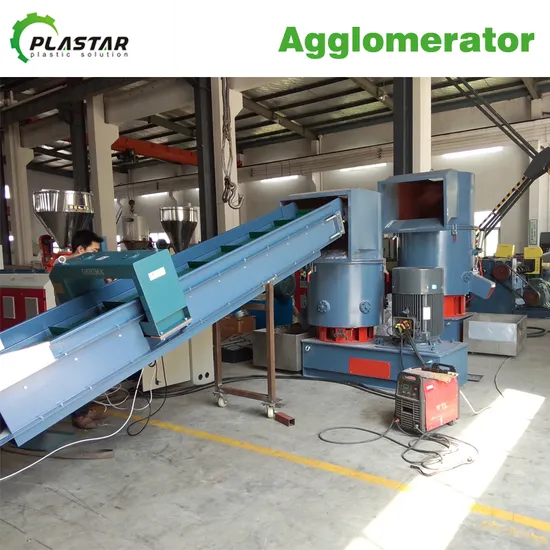

Machine pictures for reference:
Package and shipping:
About our company:
Zhangjiagang Plastar Machinery Co., Ltd. is a professional manufacturer for kinds of plastic machines, such as plastic pipe extrusion line, plastic profile extrusion line, waste plastic recycling machine, plastic crusher & Shredder and plastic process auxiliary machines, etc.
The target of Plastar Machinery Co.,Ltd is to offer the best quality machines to the customers from all over the world. With the advanced technology, experienced engineers and skilled workers, we have the capability to manufacture specific machines according to customer's requirement.
Excellent quality and professional service is the promise made by Plastar Machinery Co.,Ltd to new and old friends. We are looking forward to establish good cooperation relationship with you on the basis of mutual benefits.

---
