Hb58V Mobile Truck-Mounted Concrete Pump for Construction for Sale

Product Description

Product Description

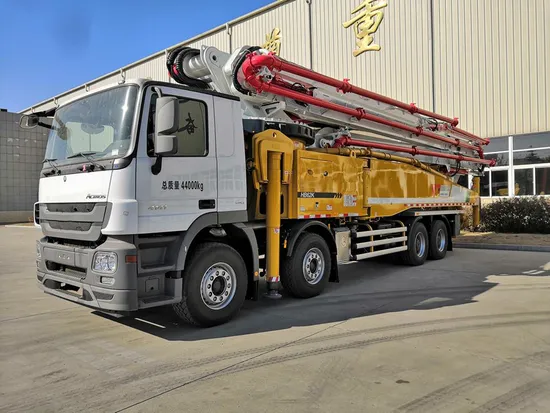

HB58V Mobile Truck-mounted Concrete Pump for Construction for Sale
Truck-Mounted Concrete Boom Pump is a convenient and efficient dedicated construction machinery for transporting and concreting concrete, which has features of short construction period, large spreading range, low labor strength and operation in confined space. It is widely used in high-rise construction, underground construction and large concrete construction.
1. The adoption of new multi-section boom design optimized by bionic technology effectively reduces placing blind zone and better adapts to placing in high-rise and narrow space.
2. On the basis of the design concept of high rigidity structure, simulative calculation and testing of full-work-condition loading make chassis structure deformation smaller and overall work stability higher.
3. Based on laser guide, coaxial assembly makes piston head's moving track more precise, with smaller resistance and higher efficiency.
4. SCHWING Germany's hydraulic technology quintessence truly realizes fully-hydraulic reversing, in which self-adaption control in fully-hydraulic closed-loop is realized, with no need for any electrical components, more effective, steadier and zero pollution.
Outline dimension: 14570*2530*3990mm
Theoretical output: 170m³/h
Reach height: 57.5m
Reach depth: 40.5m
Product Parameters

Category	Item	Unit	HB58V
Overall	Outline dimension	mm	14530×2530×4000	14360×2530×4000
	Overall weight	kg	44000
	Brand	/	Benz
Chassis	model	/	AROCS4143
	Wheelbase	mm	2050+4300+1350	2300+4050+1350
	Max.power	kW	300
Engine	Emission	/	China V
	Theoretical	m³/h	180
Pumping system	Concrete pumping pressure	Mpa	10.2
	Theoretical pumping times	Times/min	22~24
	Delivery cylinder diameter × stroke	mm	φ260×2200
Placing boom	Reach height	m	57.5
	Reach depth	m	40.5
	Slewing radius	m	52.5
	Slewing angle	°	±270
Others	Transfer tuble	/	Rock valve/S valve
