Product Introduction

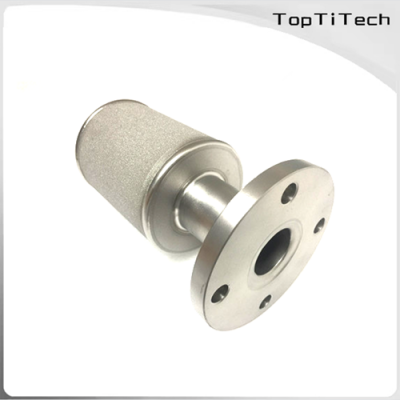

Titanium rod filter element is a porous filter element made of industrial high-purity titanium, which is formed by sieving, cooling and isostatic pressing, and then sintered at high temperature and high vacuum. It has outstanding qualities such as corrosion resistance, high temperature resistance, high strength, ease of filtration accuracy assurance, and ease of regeneration. It is suitable for the filtration of various corrosive media, such as: hydrochloric acid, sulfuric acid, hydroxide, sea water, aqua regia, and chloride solutions such as iron, copper, and sodium.
Titanium rod filter element are generally equipped with certain installation interfaces, such as flanges, after they are produced. Flanges include butt welding flanges, plate flat welding flanges, neck flanges, integral flanges, socket flanges, threaded flanges, etc. After the flange is installed, it can be installed and used with the equipment.
Technical Parameters
Filtration accuracy: 0.22um-100um
Porosity: 30-40%
Air permeability: 0.02-20M3cm/m2h
Compressive strength: 0.5-1.5Mpa
Temperature resistance: 280°C (wet state)
Maximum working pressure difference: 0.6Mpa
Diameter: Φ30mm Φ50mm Φ60mm
Length: 5 inches 10 inches 20 inches 30 inches 40 inches
Interface form: M20 M30 222 226 DFPD (double flat port)
Filtration accuracy: 0.45μm, 1μm, 3μm, 5μm, 10μm, 20μm, 30μm, 50μm, 80μm, 100μm
Features
1. High temperature resistance
Generally, it can be used normally under 280 degrees.
2. Uniform and stable precision
Uniform structure, narrow pore size distribution, high separation efficiency, high porosity, low filtration resistance, high penetration efficiency.
3. Resistance to corrosion
Chemical stability, acid and alkali corrosion resistance, and oxidation resistance are all strengths.
4.A large filter area
In accordance with food hygiene and pharmaceutical GHP criteria, there is no particle shedding and no secondary polluting of the original solution.
5. Longevity
It is easy to clean, can be regenerated online, and has a long service life (generally several times that of membrane filter elements).
Applications
1. It is employed in the pharmaceutical business for decarbonization filtration in the concentrated preparation of big infusions, tiny injections, eye drops, and oral liquids, as well as security filtration prior to terminal filtration in diluted preparations.
2. Impurity removal and filtration in the raw material production process, decarbonization filtration, and fine filtration of materials.
3. Ultrafiltration, RO, and EDI security filtration in the water treatment business, as well as filtration following ozone sterilization and ozone aeration.
4. Clarification and filtering of beverages, liquor, beer, vegetable oil, mineral water, soy sauce, and vinegar.
5. Filtration and recovery of ultrafine fine particles and catalysts, precision filtration following resin adsorption, and impurity removal and filtration of system heat transfer oil and materials, catalysis Gas rest purification, etc. are all processes used in the chemical industry to decarbonize liquid products, liquid raw materials, and pharmaceutical intermediates.
Package and Shipment
1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.
2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the designated place of the customer without damage.
