Protech Acop Protection Rope Brake with Power-off Protection for Elevators

Product Description

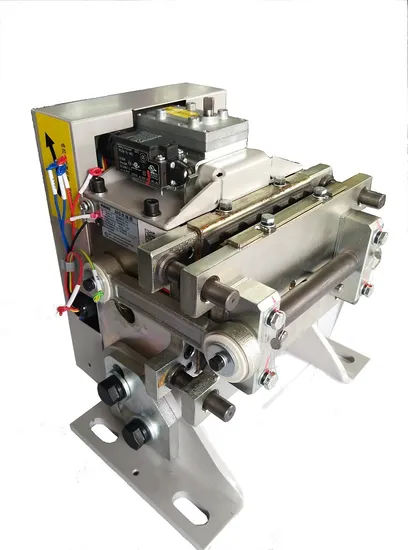

Premium Elevator Parts Rope Gripper for Optimal Safety Introducing our state-of-the-art Elevator Parts Rope Gripper, meticulously designed to deliver unparalleled unintended car movement protection (UCMP) and ascending car overspeed protection (ACOP). This advanced rope gripper stands as a beacon of reliability, ensuring the utmost safety of your elevator systems through precision engineering.
UCMP/Rope Brake/ACOP: Specialized Safety Keywords
Crafted with special composite materials to meet stringent UCMP and ACOP requirements, ensuring durability and performance.
Equipped with power-off protection and a wear self-compensation feature, our product enhances the safety and longevity of your elevator system. Engineered with a full-automatic reset design, our rope gripper ensures easier installation and hassle-free maintenance. Perfectly suited for both elevator modifications and custom installations, providing flexibility and adaptability. Elevate the safety and efficiency of your elevator system with our advanced Rope Gripper. Trust in Hangzhou Huning Elevator Parts Co., Ltd to meet all your elevator component needs with unparalleled quality. Specifications according to GB7588 for the ACOPD overspeed protection device for elevator systems:
The ACOPD elevator car up speed protection device serves as a critical safety component, incorporating speed monitoring and deceleration mechanisms. It is designed to detect any overspeed in the upward movement of the elevator car, ensuring it either stops or slows to a safe range within the counterweight buffer. This device should operate effectively under the following conditions:
a) During normal operation;
b) During manual rescue operations, unless the driving host is directly observable or alternate measures are implemented to keep the car speed under 115% of the rated speed.
When the ACOPD device halts an empty car, the deceleration should not exceed 1gn.
5.6.6.4 The deceleration component should act on:
a) The car, b) The counterweight, or c) The wire rope system (suspension or compensation ropes); or
d) The traction wheel, or e) A traction wheel shaft with only two supports.
The ACOPD device must be operable without needing to enter the elevator shaft.
Post-release, the elevator should resume normal operation only after intervention by qualified personnel.
After activation, the device should remain in working condition.
The braking components of the UCMPD device should engage on:
a) The car, b) The counterweight, or c) The steel wire rope system (suspension or compensation ropes), etc.
The braking components of the UCMPD can be shared with devices designed for:
- Downward overspeed protection;
- Upward overspeed protection.
The braking components for upward and downward directions may differ.
The UCMPD device should halt the elevator car within the following distances:
a) The distance from the landing station where unexpected elevator car movement is detected should not exceed 1.20m;
b) The vertical distance between the landing door sill and the lowest part of the car foot guard should not exceed 0.20m;
c) When configuring the shaft wall per 5.2.5.2.3, the distance between the elevator car sill and the lowest part of the shaft wall opposite the elevator car entrance should not exceed 0.20m;
d) The vertical distance between the car sill and the floor door lintel, or between the floor door sill and the car door lintel, must be at least 1.00m. The elevator car is engineered to securely transport any load up to 100% of its rated load capacity, all while preserving this crucial distance when transitioning from a stationary to a level position. This ensures optimal safety and reliability during every operation.
During the operation of the UCMPD device's stopping process, the stopping components are meticulously crafted to ensure that the car's deceleration remains within safe limits and does not exceed:
a) 1.0gn, specifically in the event that the empty car experiences an unintentional upward movement. This precision control is vital for maintaining passenger safety.
b) The permissible deceleration, ensuring strict adherence, when the free-fall protection device activates during any accidental downward movement. This guarantees a secure stop under all conditions.
5.6.7.9 If the device is triggered or if self-monitoring indicates a failure of the stopping component, it is essential that a qualified individual promptly releases or resets the elevator to restore functionality and ensure safety.
The release mechanism of this advanced device is ingeniously designed to operate without necessitating entry into the shaft, offering ease and efficiency in maintenance and emergency situations.
Post-release, the device is engineered to swiftly return to an operational condition, minimizing downtime and ensuring continuous, reliable service.

---
