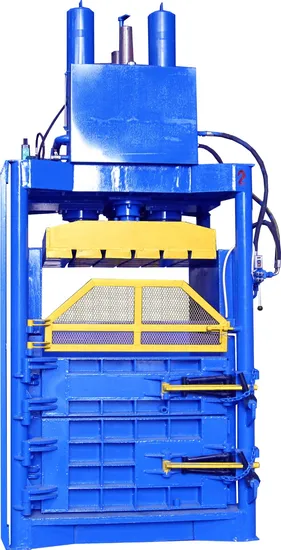

Vb-100t Hydraulic Vertical Baler Baling Machine

Product Description

Vertical Baler For Waste Paper Baling Machine
Specialized in recycling and compressing the waste paper, plastic film, fabric etc, convenient for storage, saving labor cost. Specialized in compressing cardboards, paper, plastic scraps etc.
Cross-cylinder design reduces the height of the balers, conveniently for transportation, installation and maintenance The ram will stop running downwards when the feeding gate is opened which ensures the safety of the operation Two hands are required for pressing the buttons when eject the bales out from the machine, ensures Equipped with independent emergency stop for safe operation the safety of the operator Equipped with Euro and U.S standard anti-rebound gate structure which makes sure the safety of operation PLC control system ensures the uniform bale weight Special ram guides design makes the platen not slope because of uneven materials feedings during compression Equipped with NOK seals that from Japan means longer lifespan of the seals Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems Equipped with cartridge valves that from USA, less space required for the installation Low noise design, ensures the noise no more than 70db

Model	Baler size L*W (mm)	Work pressure (KN)	Main power (KW)	Overall dimension L*W*H(mm)	Total Weight (KG)
VB-30T	900*600mm	300kn	7.5kw	1200*1000*3150mm	1500kg
VB-40T	900*600mm	400kn	7.5kw	1200*1000*3150mm	1800kg
VB-60T	1000*650mm	600kn	11kw	1530*1300*3550mm	2800kg
VB-80T	1000*650mm	800kn	11kw	1600*1350*3550mm	3280kg
VB-100T	1000*650mm	1000kn	15kw	1600*1350*3550mm	4200kg
	1100*800mm	1000kn	15kw	1700*1400*3550mm	4700kg
	1250*1100mm	1000kn	18.5kw	1840*1500*3550mm	6300kg
VB-150T	1100*800mm	1500kn	18.5kw	1800*1600*3846mm	7720kg
	1100*1250mm	1500kn	22kw	2000*1900*3846mm	8500kg

---
