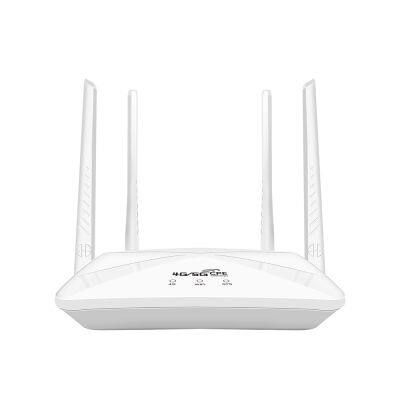

| Model Name | Cat 4 openWRT 2.4G wifi 4g hotspot router |
| Form Factor | 4g hotspot router |
| Dimension | Unit size: 170*107*208mm; 300g/pc 20pcs/ctn, ctn size: 45*41.5*22cm, 7.8Kg/ctn |
| Color | White or blue |
| Frequency | LTE:B1/3/5/7/8/20/28/38/40/41 WCDMA:B1/5/8 |
| WIFI | 2.4G, WIFI 2*2 MIMO，802.11 b/g/n |
| Technical Standard | Compatible with WCDMA, FDD-LTE，TDD-LTE Default 802.11b/g/n |
| Maximum Data Throughput | LTE CAT 4 FDD-LTE(DL/UL) 300Mbps/150Mbps HSPA+ (DL/UL) 21/5.76Mbps |
| Receive Diversity | Support Receive Diversity |
| MIMO | Support DL 2x2 MIMO |
| BB Chipset | ZX297520V3 |
| WiFi Chipset | RTL8192ES |
| WiFi Users | 16 |
| power consumption | <10W |
| Power Voltage | Mircro 5V/1A |
| USIM/SIM | 2FF SIM card support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal |
| LED | Power Indication LED， WiFi Indication LED， LAN/WAN Interface Status LED，Internet Status LED, Signal Strength LED |
| Antenna | External Antenna |
| Buttons | Reset,WPS |
| Ethernet | 1LAN, 10BaseT/100Base/ automatic adaptive port |
| RJ11 | N/A |
| Reset | Pin hole |
| ESD | Contact±8KV、Air±10KV |
| Battery | N/A |
| SW Update | TR069 & FOTA(customized) & Local |
| WIFI Mode | AP/STATION mode |
| WIFI Security | OPEN & WPA-PSK& WPA2-PSK |
| SMS & Phone Book | YES |
| UPnP | Need customize |
| IPv4 | Support IPv4 |
| IPv6 | Support IPv6 |
| Firewall | Mac/IP address filter, Port forwarding, WiFi Black/Whilte list |
| Data Statistics | Support |
| SIM Lock | Support |
| HTTP | Support |
| DMZ | Support |
| Operating Temperature | Normal:-10°C to +65°C; |
| Storage Temperature | -20° C to +85° C |
| Humidity | 5%~ 95% |
