Basic Info.
Processing Accessory
Manual Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Way Toolpost
Controlling Mode
Artificial
Certification
GS, CE, RoHS, ISO 9001
Name
C6253 High Precision Combined Metal Turning Lathe
Distance Between Centers
1500mm
Tool Post Type
4-Way Toolpost
Transport Package
Wooden Case
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
350.00cm * 110.00cm * 190.00cm
Package Gross Weight
3400.000kg
Product Description

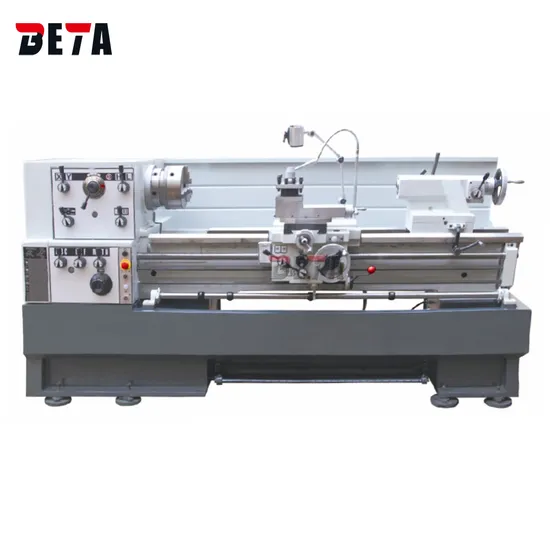

C6253 High precision combined metal turning lathe 1500mm
| Model | C6253x1500 |
| Max. swing over bed | Φ530mm |
| Max. Swing in gap | Φ765mm |
| Max. swing over cross slide | Φ329mm |
| Center height | Φ265mm |
| Distance between centers | 1515mm |
| Width of bed | 400mm |
| Max.section of tool | 25x25mm |
| Max. travel of cross slide | 320mm |
| Max. travel of compound rese | 200mm |
| Spindle bore | Φ82mm |
| Spindle nose | D1-8 |
| Taper of spindle speed | ME90 |
| Range of spindle speed | 12 steps 20-1600r/min |
| Leadscrew pitch | 6 mm or 4T.P.I. |
| Range of metric threads | 0.25-7mm (24 kinds) |
| Range of inch threads | 4-112 T.P.I.(50 kinds) |
| Range of Diametrical pitch | 4-112 D.P. (50 kinds) |
| Range of module pitches | 0.25-14 M.P.(34 kinds) |
| Dia. of tailstock sleeve | 80mm |
| Travel of tailstock sleeve | 180mm |
| Morse taper of tailstock sleeve | MT5 |
| Power of main motor | 7.5kw |
| Power of coolant pump | 90W |
| Packing size(L*W*H | 3035*1150*1910mm |
| N.W/G.W | 2750/3090 kg |
TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units.
Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.
>>
