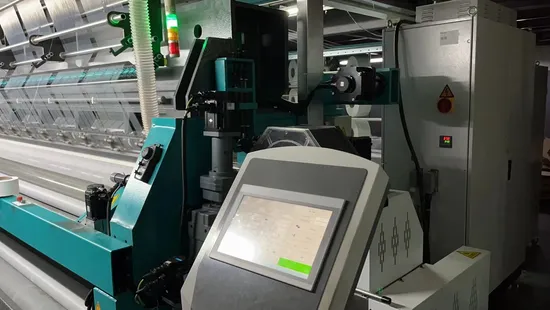

CH Rsmsus-G Weft-Insertion Fiber Glass Geogrid Raschel Warp Knitting Machine

US$280,000.00-350,000.00 1 SET (MOQ)

Basic Info.

Model NO.
CH RSMSUS-G
Knitting Product Type
Biaxial Warp Knitting
Knitting Style
Warp
Knitting Method
Single
Needle Style
Compound Needle
Needle Bar Style
Flatbed Knitting Machine
Computerized
Computerized
Certification
CE
Condition
New
After-sales Service
Ok
Yarn
Polyester
Yarn Can Be
Polyester, Basalt and Glass Fiber
Production
Geogrids
Gauge
E3/E6/E9/E10
Transport Package
Vacuum Package
Specification
40"HQ container for one set machine
Trademark
ARIS
Origin
China
HS Code
8447201100
Production Capacity
10 Sets/Month

Product Description


-Model: CH RSMUS-G
-For the production of biaxial fabrics with course-oriented weft-insertion system and filler yarn feeding -Max. working Width: 213 inches
-Gauge.: E4.5
Machine Dimensions: 9800*7000*3400mm
- Pattern drive: Pattern disc
-Drive mechanism: Adopt crankshaft and high-speed linkage mechanism, and use constant temperature oil circulation lubrication mechanism
-Bars: 3 (one bar for filler threads, two guide bars)
-Speed:1300RPM
-Needle bed: Carbon fiber
-EBA:GB1,2,3 1KW servo motor
-Dia42" beam shaft
-Electronic fabric take-up
-Electronic fabric batching
-Needles: GROZ BECKERT
-Bearings: SKF+ INNA+FAG
-Total equipment power 35KVA
