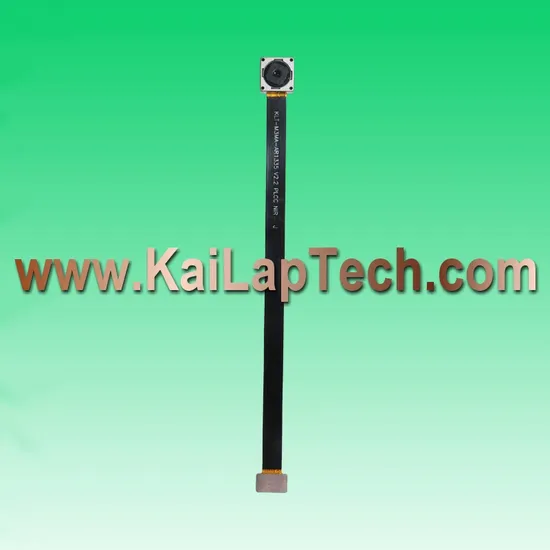

Klt-M3ma-Ar1335 V2.2 Plcc Nir 13MP Ar1335 Plcc Mipi-Schnittstelle Kein IR-Filter Autofokus Kameramodul

Product Description

13MP AR1335 PLCC MIPI-Schnittstelle Kein IR-Filter Autofokus Kameramodul
Kameramodul Nr. KLT-M3MA-AR1335 V2.2 PLCC NIR

Kameramodul Nr.	KLT-M3MA-AR1335 V2.2 PLCC NIR
Auflösung	13MP
Bildsensor	AR1335 PLCC
Sensorart	1/3.2"
Pixel Größe	1.1 um x 1.1 um
EFL	3.81 mm
F.NO	2.20
Pixel	4208 x 3120
Betrachtungswinkel	74.4°(DFOV) 62.7°(HFOV) 48.7°(VFOV)
Linsenabmessungen	8.50 x 8.50 x 5.60 mm
Modulgröße	110.00 x 8.50 mm
Modultyp	Autofokus
Schnittstelle	MIPI
Autofokus-VCM-Treiber-IC	CN3927
Linsenmodell	KLT-LENS-50013A1
Linsentyp	Keine IR-Filterlinse
Betriebstemperatur	-30°C to +70°C
Gegenstecker	DF30FC-30DS-0.4V
