Cable Reel System Motorized Cable Reel System for Power Supply

Product Description

1. COMPANY PROFILELeitai is a China leading crane, crane components and lifting tools supplier. Dedicated to the research and development of new lifting and handling technologies, we adopt innovative ideas and design in developing new products and services. Backed up by a wealth of industrial experience on lifting industry, WE can provide to customer wide range of lifting equipment and components with scientific design, good safety, high performance, efficient operation and low maintenance cost. We are committed to help our clients to reduce investment cost, improve production efficiency, and economize energy consumption. 2. OUR PRODUCTSIn order to offer clients with a complete set of competitive lifting solution. WE delivers a wide range of products.1. Industrial Crane: Overhead Crane, Gantry Crane, Jib Crane, Light Crane System.2. Crane Components: Electric Hoist & Trolley, End carriage, Conductor Rail, Festoon system, Steel Rail, Flat cable, Pendent control, geared motor, remote control etc.3. Lifting Tools: Hand block, Chain Hoist, Lifting Clamp, Wire Rope Puller, Permanent Magnetic Lifter,Roller Skates, Crane Scales, Hand Hydraulic Pallet Truck, Jack, Sling & Lashings, Chain Slings& Shackles.3. PRODUCT DETAILS - Leitai MCR Series Motorized Cable Reeling System
Feature

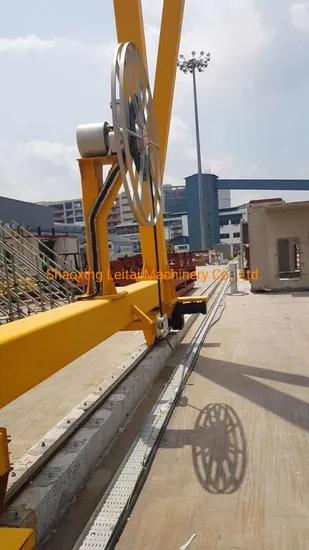

MCR Motorized Cable reel system are the perfect solution for managing long lengths of heavy cable in very demanding industrial applications. We can offer Optimal corrosion protection: Flanges and reel drum are manufactured from hot dip galvanized steel in tough environments.
Applications:
1. Ship-to-shore (STS) cranes
2. Rail mounted gantry (RMG) cranes
3. Shipbuilding cranes
4. Gantry cranes, Overhead cranes
5. Grabs or magnets, Transfer cars

ITEM	MCR10				MCR20				MCR60				MCR90				MCR110				MCR150
Winding torque (Nm)	100				250				580				750				1000				1250
Cable Size	4×6	4×10		4×16	4×16	4×25		4×35	4×35	4×50		4×70	4×50	4×70		4×95	4×70	4×95		4×120	4×120
Cable Length	80	60		50	90	70		60	125	100		80	150	120		100	180	150		130	160
Winding speed (m/min)	automatic tracking with speed ≤50m/min
Power of motor (kw)	0.75		1.1		1.1		1.5		2.2		3		3		4		4		5.5		7.5
Reduction ratio	56				63				71				65				63				71
Max.Cable Weight (kg)	80				240				560				720				960				1200

4. Workshop 5S management

---
