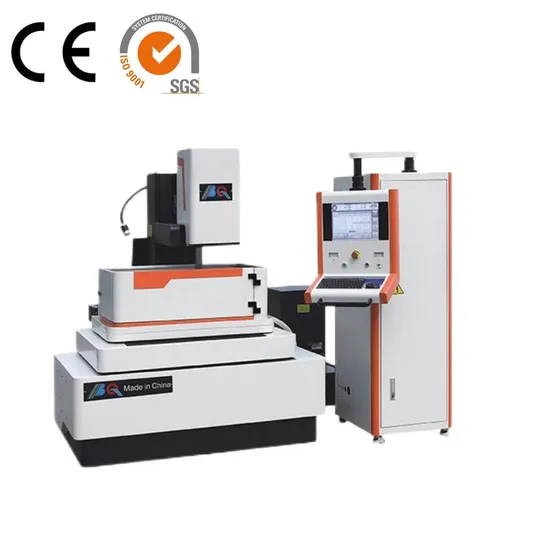

High Precision CNC Machine Tools with Factory Price Molybdenum Wire Cutting EDM Bq500

Product Description

Leading CNC Wire Cut EDM Manufacturer in China, Providing customer High End EDM machines with Fast cutting speed.
Customers spread in aerospace, electronic,aotomative, 3D printing, militay and defense,mold and tooling industry.
Products export to Europe, Russia, South America, Southeast Asia, Middle East, etc

Parameters	BQ400	BQ500	BQ630	BQ800
Worktable size(mm)	735x460	836x550	935x645	1120×800
X/Y travel(mm)	400x320	500x400	630x500	800×630
Max workpiece size(mm)	800x500	980x600	1140x730	1300×840
Max cutting thickness(mm)	300	300	300	380
Max load weight(kg)	400	600	900	1400
U/V travel(mm)	80x80	80x80	80x80	80x80
Max cutting taper	±15°/150mm	±15°/150mm	±15°/150mm	±15°/150mm
Control type	Mitsubishi Servo , UVZ hybrid motor	Mitsubishi Servo , UVZ hybrid motor	Mitsubishi Servo , UVZ hybrid motor	Mitsubishi Servo , UVZ hybrid motor
Z transmission	Numerical control	Numerical control	Numerical control	Numerical control
Simultaneously Controlled axes	X Y U V-4 Axis	X Y U V-4 Axis	X Y U V-4 Axis	X Y U V-4 Axis
Wire diameter(mm)	Φ0.1-Φ0.2	Φ0.1-Φ0.2	Φ0.1-Φ0.2	Φ0.1-Φ0.2
Wire speed (m/s)	1-11.4	1-11.4	1-11.4	1-11.4
Reposition accuracy(mm)	≤±0.003	≤±0.003	≤±0.003	≤±0.005
Max cutting speed (mm2/min)	≥300	≥300	≥300	≥300
Roughness/Ra(um)	0.7-1.4	0.7-1.4	0.7-1.4	0.7-1.4
Water tank volume(L)	120	120	120	120
Filtering method	3 layer filtration	3 layer filtration	3 layer filtration	3 layer filteration
Power supply	Three phase 380V AC/50Hz	Three phase 380V AC/50Hz	Three phase 380V AC/50Hz	Three phase 380V AC/50Hz
Control system	Baqi system	Baqi system	Baqi system	Baqi system
Total power consumption(kw)	1.6	1.7	1.8	2
Max machining current(A)	10	10	10	10
Machine gross weight(kg)	2100	2600	3600	4200
Machine size(mm)	1300x1550x1920	1550x1770x2050	1580x1820x2050	2090*2330*2580
Top-bottom abnormity cutting	Yes	Yes	Yes	Yes

Remote control and digital management function:
Our machine integrates data management, information mornitoring and other digital functions. Users can operate monitoring software on the remote servicer in real time to monitor each machines working status, processing progress, to arrange work high efficiently.
Standard Configuration:
1) Win10 System with BQ control System(own R&D),dual CPU
2) HT300 Casting Machine Body, two times heat treatment, prevent deformation effectively.
3) 5 axis digital display and Z axis motorized freely drive up and down.
4) Pulse and anti-electrolytic power supply, to enhance cutting accuracy.
5) Automatic edge finding, automatic center finding.
6) XY Mitsubishi /Panasonic servo , UVZ servo motor/ hybrid motor
7) THK / HIWIN /PMI high precision linear guide way
8) THK / HIWIN /PMI high precision ball screw
9) NSK, Japan /FAG, Germany bearings
10) Japan PANASONIC converter.
11) PHILIPS Industrial Computer
12) Automatic center lubrication system.

System functions:
BQ series medium wire cut EDM adopts computer control, X,Y,U,V,4 axis simultaneously controlled, the discharge parameter can be automatic selected and control. It is programmed with internationally universal ISO code.The main system functions are as following:

mirror machining	proportionally scaling
conventional taper cutting	top-bottom abnormality cutting
single-stage machining	4 axis simultaneously cutting
program editing	automatic wire radius compensation
automatically machining condition convert	simulation check
return halfway	pitch compensation
automatic edge finding	automatic center finding
wire alignment	graphic real time tracking and check
subprogram calling	unmanned processing(power-off after finishing)
back to the origin point and suspension point	wire feeding speed adjustment

Full travel reposition accuracy ≤ ±0.003mm

Measured by Laser Interfermeter. Reverse error : 0.0009mm System deviation: 0.0016mm Average deviation: 0.0015mm Accuracy: 0.0016mm Repeatability: 0.0009mm R+(single repeatability): 0.000mm R-(single repeatability): 0.000mm A+(single accuracy): 0.0016mm A-(single accuracy): 0.0014mm
Delivery 3000 sets a year:



Contact us for more details, you will get reply within 24 hours .

---
