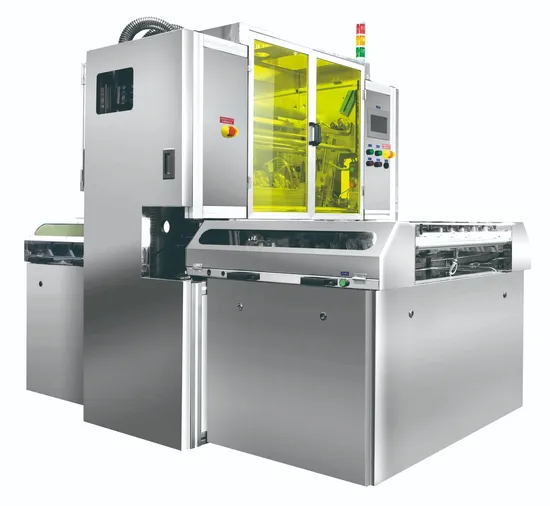

Auto Film Laminating Machine PCB Vacuum Laminator Machine

Product Description

Product Description Dry Film Auto Cutting Laminator
model number: GH-D740
current source:AC380V 3 Phase 12KW 50HZ
pressure :5-8kgw/cm2
outline dimension:L2200*W1H1910m640*m
The effective width of the film pressure:750MM
Baseline length: 350~760mm
Baseline width: 350~760mm
Baseline thickness: 0.1~3.3mm
Dry film size:
Membrane width:250~750mm
film thickness:15~76μm
Membrane diameter:external diameter 200mm
control method:PLC+human-computer interface
Hot pressure:Ø 78mm*860mm
Heating method:Inductive heater
Number of hot pressing rollers:2
Pressure membrane speed:velocity range0~5.5m/min Man-machine interface is set arbitrarily.
Film pressure temperature:SSR+PLC temperature control indoor temperature~130ºC
Main material:SUS304Mirror stainless steel.
Pressure membrane pressure:2-6kg/cm2(adjustable)
vacuum grip device:Five-section operation width setting
Vacuum pump:2.2KW(3HP)
Vacuum suction disc range:9 "~13 ",14 "~17",18"~21",22 "~25 ",23 "~28 "
Silicone wheel Ø 40m/m,Stainless steel roller Ø 31.5mm P=74mm
structure:Host body mobile type, convenient for dry film replacement
Before dew copper:0.0~49.9mm
After dew copper:0.0~12.9mm
Brass error:±1.0mm
Board edge error:±1.0mm
exhaust:40CM(caliber Ø 4")
Equipment Weight: about 1600 kg

---
