Automatic HDPE Plastic Small Bottle Drum Toy Canister Container Extrusion Making Blowing Blow Molding Moulding Machine

Product Description

PXB65
2L-5L Blow Molding Machine
Special Feature:
- High Speed Single Station For HDPE, LDPE, PP, PS, etc. Raw Material
- The whole hydraulic system equip Japanese YUKEN components
- Perfect Usage for high quality 2L-5L bottle, oil can, toys etc.
- Imported hydraulic valve, seal and Pressure Proportional Control.
- Optional Multi-color
- Quick Action Speed, Stable Running
Configuration List

PLC	MITSUBISHI	Japan
Touch Screen	HITECH	Taiwan
Inverter	MITSUBISHI	Japan
Power Supply	MEAN WELL	Taiwan
Relay	OMRON	Japan
Hydraulic Valves	YUKEN	Japan
Hydraulic Pump	YUKEN	Japan
Contactors	LS(LG)	Korea
Solid relay	FOTEK	Japan
Breaker	LS(LG)	Korea
Temperature Control Module	MITSUBISHI	Japan
Oil Sealing	DZ	Taiwan
Oil Tube	LIEBAO	Taiwan
Transducer	GEFRAN	Italy
Proximity Switch	SONON	China
Motor	SIEMENS	China

Basic Equipment

Clamping system	Single Station+High-precision guide+large arm cylinder axle
Extrusion System	Hard gear surface decelerator+Japan inverter
Die system	Center -incoming extrusion die with special steel
Hydraulic system	Japan hydraulic valve seal and proportional control
Control system	Japan PLC+Imported+PLC automatic temperature control model+Imported electrionic parts

Parameters

Specifications
Material		PE,PP, PVC, PA
Max container capacity	L	5
Number of die	SET	1,2,3,4
Output(dry cycle)	Pc/hr	1000
Machine Dimension(LxWxH)	M	3.4x1.9x2.5
Total weight	T	4.0
Clamping Unit
Clamping force	KN	68
Platen opening stroke	mm	150-500
Platen size	mm	338x380
Max mould size(WxH)	mm	338x350
Mould thickness	mm	155-300
Power
Max drive	KW	26
Total power	KW	32.5
Fan power for screw	KW	0.25
Air pressure	MPA	0.7
Air consumption	M3/min	0.6
Average energy consumption	KW	17
Extruder unit
Screw diameter	mm	65
Screw L/D ratio	L/D	24
Melting capacity	Kg/hr	70
Number of heating zone	zone	3
Extruder heating power	KW	13.8
Extruder driving power	KW	15

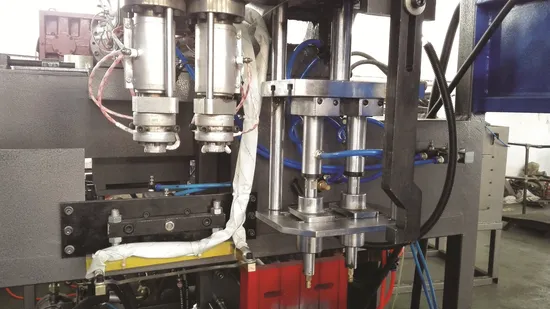

Die
Number of heating zone	zone	3
Power of die heating	KW	5.7
Max die-pin diameter	mm	135
Center distance of double die	mm	160
Center distance of tri-die	mm	110
Center distance of tetra-die	mm	85

Delivery Time:
- No later than 40 days after receipt of the deposit
Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).
Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.
Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.
Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.
